CLEC-14552

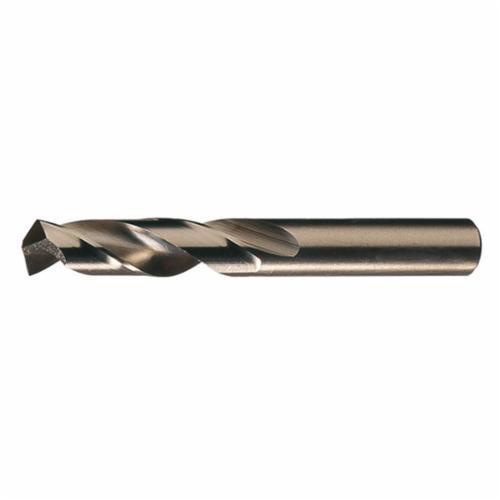

Cleveland® C14552 2133 General Purpose Heavy Duty Screw Machine Drill #41 Drill - Wire 0.096 in Drill - Decimal Inch M42 HSS-Co 8 Straw/Gold Oxide
Product information
Description
Cleveland® Screw Machine Drill General Purpose Heavy Duty Series: 2133 Imperial #41 Drill - Wire 0.096 in Drill - Decimal Inch 1-13/16 in Overall Length 13/16 in Cutting Depth 2 Flutes Right Spiral Flute 13/16 in Flute Length 0.096 in Dia x 1 in L Shank Straight Shank 135 deg Point Split Point Right Hand Cutting Direction M42 HSS-Co 8 Cutting Edge M42 HSS-Co 8 Straw/Gold Oxide Applicable Materials: Carbon Steel Cast Iron Stainless Steel and Tool Steel
Additional details
Product details
- Cobalt provides high heat resistance for tough applications Short flutes provide enhanced rigidity and drill more accurate holes Highly heat resistant substrate for tough to machine materials
Attributes
- Applicable Materials: Carbon Steel Cast Iron Stainless Steel and Tool Steel
- Cutting Direction: Right Hand
- Cutting Edge Material: M42 HSS-Co 8
- Finish: Straw/Gold Oxide
- Flute Length: 13/16 in
- Material: M42 HSS-Co 8
- Overall Length: 1-13/16 in
- Point Angle: 135 deg
- Point Type: Split
- Shank Type: Straight
