CLEC-12814

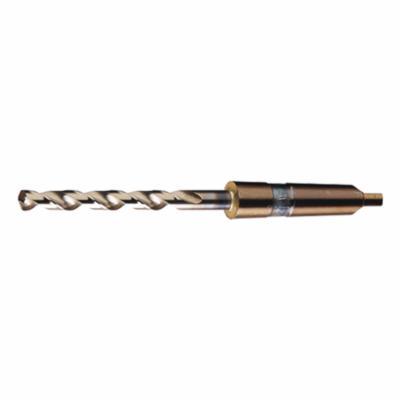

Chicago-Latrobe® C12814 2440 Heavy Duty Taper Shank Drill Bit 3/4 in Drill - Fraction 0.75 in Drill - Decimal Inch #3 Morse Taper Shank Taper M42 HSS-Co 8
Product information
Description
Chicago-Latrobe® Taper Shank Drill Bit Heavy Duty Series: 2440 Imperial 3/4 in Drill - Fraction 0.75 in Drill - Decimal Inch 1-1/2 in Overall Length 5-7/8 in Cutting Depth 2 Flutes Spiral Flute 5-7/8 in Flute Length #3 Morse Taper Shank Taper Designation 135 deg Point Notched Point Right Hand Cutting Direction M42 HSS-Co 8 Cutting Edge No Through Coolant M42 HSS-Co 8 Straw Oxide Applicable Materials: Alloy Tool Steel Carbon Steel Cast Iron and Stainless Steel
Additional details
Product details
- High red hardness for extended wear life in high heat conditions
Attributes
- Applicable Materials: Alloy Tool Steel Carbon Steel Cast Iron and Stainless Steel
- Cutting Direction: Right Hand
- Cutting Edge Material: M42 HSS-Co 8
- Finish: Straw Oxide
- Flute Length: 5-7/8 in
- Material: M42 HSS-Co 8
- Overall Length: 1-1/2 in
- Point Angle: 135 deg
- Point Type: Notched
