CLEC-11435

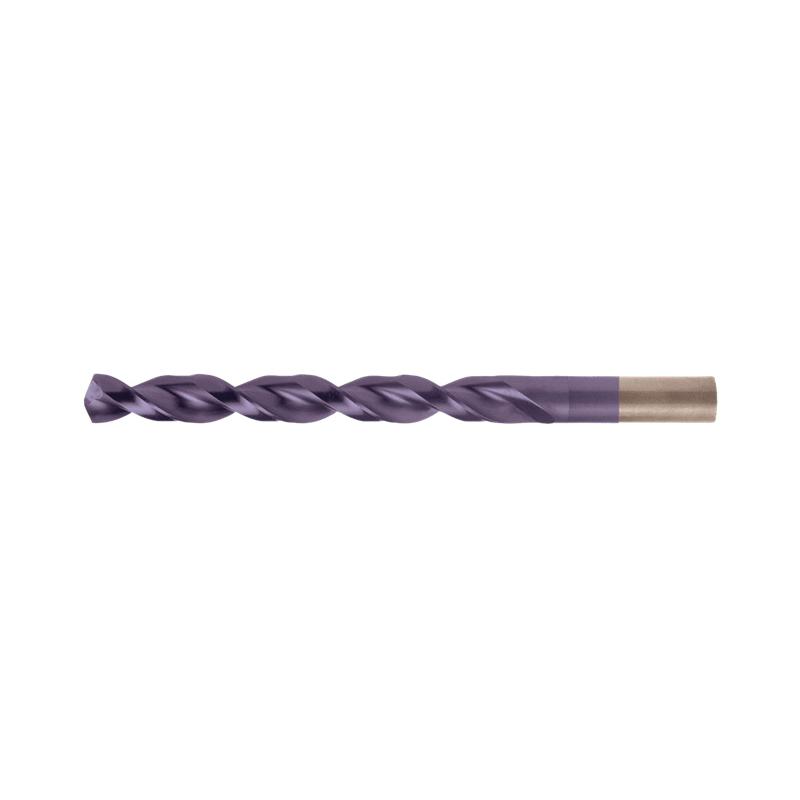

Cleveland® Q-CO" C11435 2075-TA High Performance Jobber Length Drill Bit #35 Drill - Wire 0.11 in Drill - Decimal Inch 135 deg Point M42 HSS-Co 8 TiAlN Coated
Product information
Description
Cleveland® Q-CO" Jobber Length Drill Bit High Performance Series: 2075-TA Imperial #35 Drill - Wire 0.11 in Drill - Decimal Inch 2-5/8 in Overall Length 1-1/2 in Cutting Depth 2 Flutes Right Spiral/Wide Land Parabolic Flute 1-1/2 in Flute Length 0.11 in Dia x 1.125 in L Shank Straight Shank 135 deg Point Split Point Right Hand Cutting Direction M42 HSS-Co 8 Cutting Edge No Through Coolant M42 HSS-Co 8 TiAlN Coated Applicable Materials: Aluminum Brass Cast Iron High/Low/Medium Carbon Steel Nickel Alloy Stainless Steel and Tool Steel
Additional details
Product details
- Deliver close hole tolerance for high precision work Use higher speeds and feeds for increased productivity 38 deg helix -0.0005 in drill diameter tolerance 0.125/-0.0625 in overall length tolerance 0.125/-0.0625 in flute length tolerance
Attributes
- Applicable Materials: Aluminum Brass Cast Iron High/Low/Medium Carbon Steel Nickel Alloy Stainless Steel and Tool Steel
- Cutting Direction: Right Hand
- Cutting Edge Material: M42 HSS-Co 8
- Finish: TiAlN Coated
- Flute Length: 1-1/2 in
- Material: M42 HSS-Co 8
- Overall Length: 2-5/8 in
- Point Angle: 135 deg
- Point Type: Split
- Shank Type: Straight
