CLEC-09478

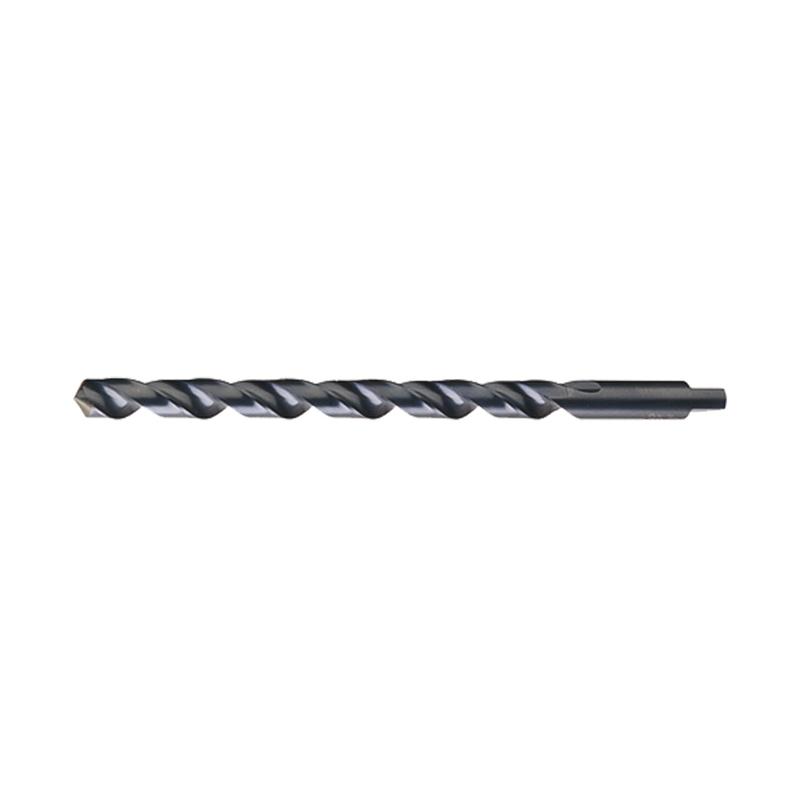

Cleveland® C09478 2540 Heavy Duty Taper Length Drill 7/32 in Drill - Fraction 0.2188 in Drill - Decimal Inch 6 in OAL HSS Black Oxide
Product information
Description
Cleveland® Taper Length Drill Heavy Duty Series: 2540 7/32 in Drill - Fraction 0.2188 in Drill - Decimal Inch 6 in Overall Length 3-7/16 in Cutting Depth 2 Flutes Spiral Flute 3-7/16 in Flute Length 7/32 in Shank Tanged Shank 118 deg Point Notched Point Right Hand Cutting Direction HSS Cutting Edge HSS Black Oxide Applicable Materials: Alloy Tool Steel Cast Iron and Stainless Steel
Additional details
Product details
- Drills feature a 20 longer flute length than regular taper length drills for increased regrinds and reach Steam oxide drills provide better wear life in ferrous materials 30 deg helix -0.0007 in drill diameter tolerance +/-0.125 in overall length tolerance +/-0.125 in flute length tolerance +/-5 deg point angle tolerance
Attributes
- Applicable Materials: Alloy Tool Steel Cast Iron and Stainless Steel
- Cutting Direction: Right Hand
- Cutting Edge Material: HSS
- Finish: Black Oxide
- Flute Length: 3-7/16 in
- Material: HSS
- Overall Length: 6 in
- Point Angle: 118 deg
- Point Type: Notched
- Shank Type: Tanged
