CLEC-09060

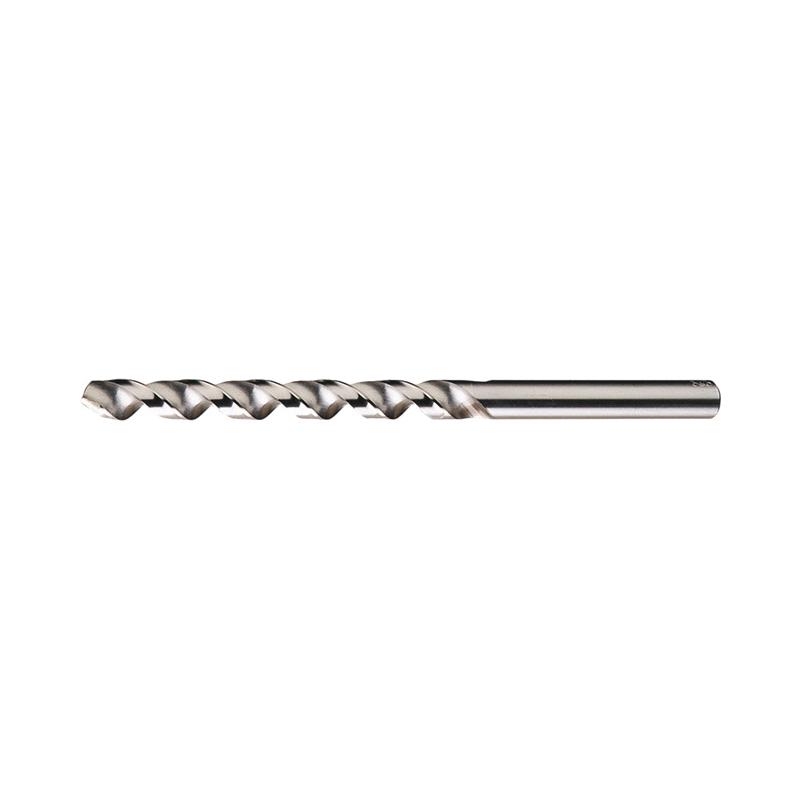

Cleveland® C09060 2550 General Purpose High Helix Taper Length Drill 1/32 in Drill - Fraction 0.0312 in Drill - Decimal Inch 2 in OAL HSS Bright
Product information
Description
Cleveland® Taper Length Drill General Purpose High Helix Series: 2550 1/32 in Drill - Fraction 0.0312 in Drill - Decimal Inch 2 in Overall Length 3/4 in Cutting Depth 2 Flutes Spiral Flute 3/4 in Flute Length 1/32 in Shank Straight Shank 118 deg Point Radial Point Right Hand Cutting Direction HSS Cutting Edge HSS Bright Applicable Materials: Alloy Steel Aluminum Copper Alloy and Plastic
Additional details
Product details
- Improved chip lifting in soft materials Uncoated (bright) series are used in non-ferrous materials 38 deg helix -0.0005 in drill diameter tolerance 0.125/-0.0625 in overall length tolerance 0.125/-0.0625 in flute length tolerance +/-5 deg point angle tolerance
Attributes
- Applicable Materials: Alloy Steel Aluminum Copper Alloy and Plastic
- Cutting Direction: Right Hand
- Cutting Edge Material: HSS
- Finish: Bright
- Flute Length: 3/4 in
- Material: HSS
- Overall Length: 2 in
- Point Angle: 118 deg
- Point Type: Radial
- Shank Type: Straight
