CLEC-08688

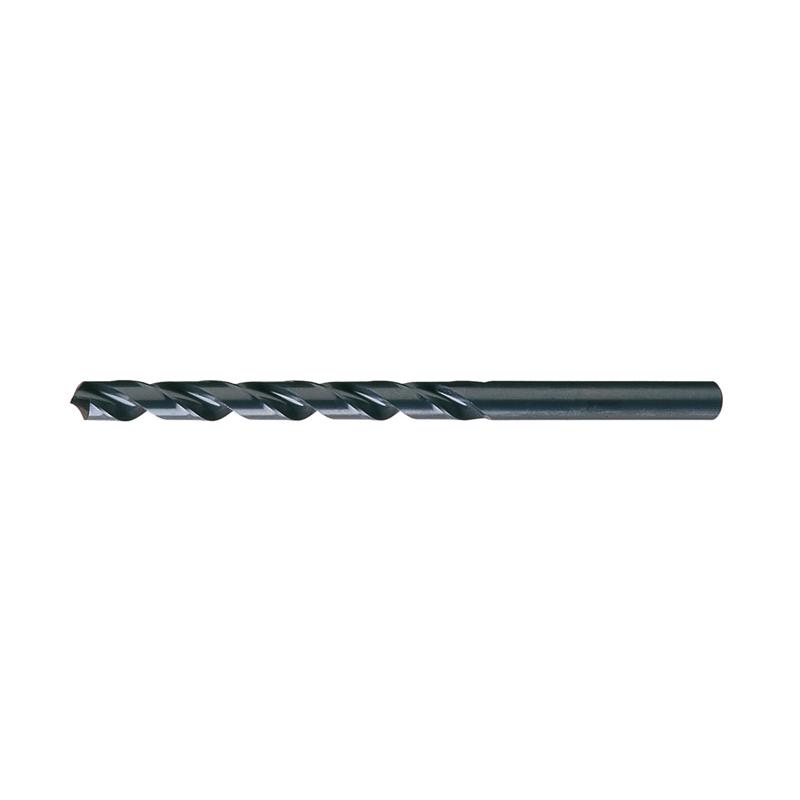

Cleveland® C08688 2510 General Purpose Taper Length Drill #21 Drill - Wire 0.159 in Drill - Decimal Inch 5-3/4 in OAL HSS Black Oxide
Product information
Description
Cleveland® Taper Length Drill General Purpose Series: 2510 #21 Drill - Wire 0.159 in Drill - Decimal Inch 5-3/4 in Overall Length 3-3/8 in Cutting Depth 2 Flutes Spiral Flute 3-3/8 in Flute Length 0.159 in Shank Straight Shank 118 deg Point Radial Point Right Hand Cutting Direction HSS Cutting Edge HSS Black Oxide Applicable Materials: Alloy Steel Carbon Steel and Cast Iron
Additional details
Product details
- Steam oxide drills provide better wear life in ferrous materials 30 deg helix -0.0007 in drill diameter tolerance +/-0.125 in overall length tolerance +/-0.125 in flute length tolerance +/-5 deg point angle tolerance
Attributes
- Applicable Materials: Alloy Steel Carbon Steel and Cast Iron
- Cutting Direction: Right Hand
- Cutting Edge Material: HSS
- Finish: Black Oxide
- Flute Length: 3-3/8 in
- Material: HSS
- Overall Length: 5-3/4 in
- Point Angle: 118 deg
- Point Type: Radial
- Shank Type: Straight
