CLEC-08665

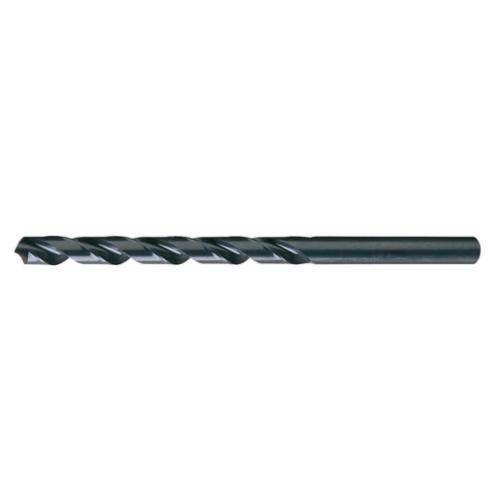

Cleveland® C08665 2510 General Purpose Taper Length Drill 1/8 in Drill - Fraction 0.125 in Drill - Decimal Inch 5-1/8 in OAL HSS Steam Oxide
Product information
Description
Cleveland® Taper Length Drill General Purpose Series: 2510 1/8 in Drill - Fraction 0.125 in Drill - Decimal Inch 5-1/8 in Overall Length 2-3/4 in Cutting Depth Spiral Flute 2-3/4 in Flute Length 1/8 in Shank Straight Shank 118 deg Point Radial Point Right Hand Cutting Direction HSS Cutting Edge HSS Steam Oxide Applicable Materials: Alloy Steel Carbon Steel and Cast Iron
Additional details
Product details
- High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials Oxide prevents chip building galling and welding on the work piece it is commonly used on low carbons stainless steel and ferrous metals Spiral flutes are constructed with a higher flute angle to remove chips more easily
Attributes
- Applicable Materials: Alloy Steel Carbon Steel and Cast Iron
- Cutting Direction: Right Hand
- Cutting Edge Material: HSS
- Finish: Steam Oxide
- Flute Length: 2-3/4 in
- Material: HSS
- Overall Length: 5-1/8 in
- Point Angle: 118 deg
- Point Type: Radial
- Shank Type: Straight
