CLEC-01024

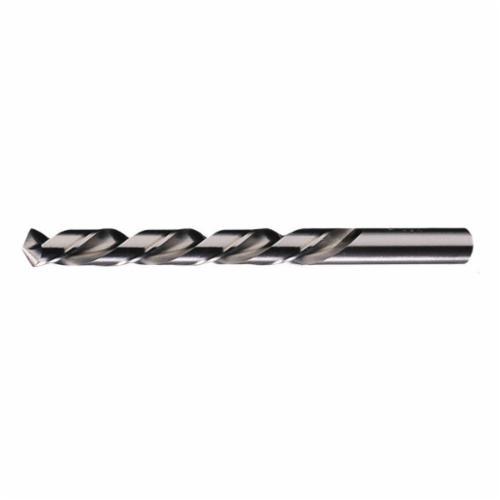

Cleveland® C01473 2006 General Purpose High Performance Jobber Length Drill Bit 5/32 in Drill - Fraction 0.1562 in Drill - Decimal Inch 118 deg Point HSS Bright
Product information
Description
Cleveland® Jobber Length Drill Bit General Purpose High Performance Series: 2006 Imperial 5/32 in Drill - Fraction 0.1562 in Drill - Decimal Inch 3-1/8 in Overall Length 2 in Cutting Depth 2 Flutes Left Spiral Flute 2 in Flute Length 5/32 in Dia x 1-1/8 in L Shank Straight Shank 118 deg Point Radial Point Left Hand Cutting Direction HSS Cutting Edge No Through Coolant HSS Bright Applicable Materials: Alloy Tool Steel Carbon Steel and Cast Iron
Additional details
Product details
- Left hand helix ideal for screw machine and turret lathe operations General purpose flutes construction for a wide variety of applications Bright finish is excellent for non-ferrous applications and low tensile steels High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and non-ferrous materials Bright provides a smooth polished finish on the tool it increases chip flow in softer materials such as aluminum wood and plastic Spiral flutes are constructed of a higher flute angle to remove chips easier
Attributes
- Applicable Materials: Alloy Tool Steel Carbon Steel and Cast Iron
- Cutting Direction: Left Hand
- Cutting Edge Material: HSS
- Finish: Bright
- Flute Length: 2 in
- Material: HSS
- Overall Length: 3-1/8 in
- Point Angle: 118 deg
- Point Type: Radial
- Shank Type: Straight
