ISCA-5594071

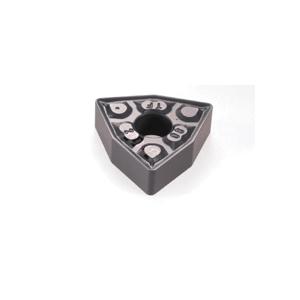

Iscar 5594071 ISOTURN 2-Sided Turning Insert ANSI Code: WNMG 432-TF IC908 WNMG Insert Material Grade: H K M P S 432 Insert Trigon Shape 08 Seat Positive Rake Carbide Manufacturer's Grade: IC908
Product information
Description

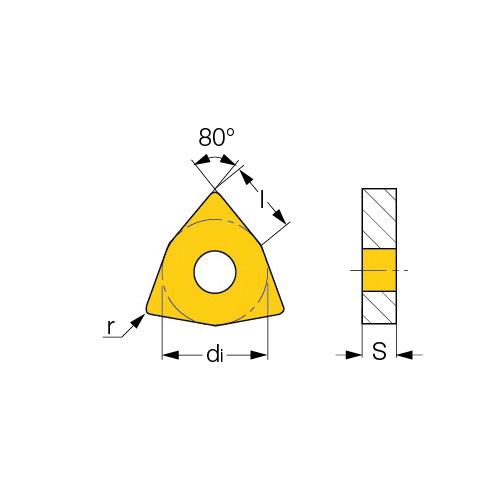

Iscar Turning Insert 2-Sided Series: ISOTURN WNMG Insert 432 Insert Trigon 4 mm Maximum Depth of Cut 12.7 mm Inscribed Circle 4.76 mm Thickness 08 Seat Positive Rake TF Chipbreaker 0.8 mm Corner Radius 0.203 in Hole Dia Manufacturer's Grade: IC908 ANSI Code: WNMG 432-TF IC908 ISO Code: WNMG 080408-TF IC908 80 deg Included Angle 0 deg Relief Angle Carbide PVD-TiAlN Coated Material Grade: H K M P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel and High Temperature Alloys
Additional details
Product details
- Double-sided trigon insert positive rake angle that varies along the edge to negative in order to prevent chipping Special design reduces cratering Chipbreaker on both sides with hole
Attributes
- Corner Radius: 0.8 mm
- Finish: PVD-TiAlN Coated
- Insert Size: 432
- Insert Style: WNMG
- ISO Code: WNMG 080408-TF IC908
- Manufacturer's Grade: IC908
- Material: Carbide
- Material Grade: H K M P S
- Series: ISOTURN
- Shape: Trigon
