ISCA-5510284
Iscar 5510284 ISOTURN 2-Sided Turning Insert ANSI Code: WNMG 333-M3M IC6015 WNMG Insert Material Grade: M 333 Insert Trigon Shape 06 Seat Positive Rake For Use On Stainless Steel Carbide Manufacturer's Grade: IC6015
Product information
Description

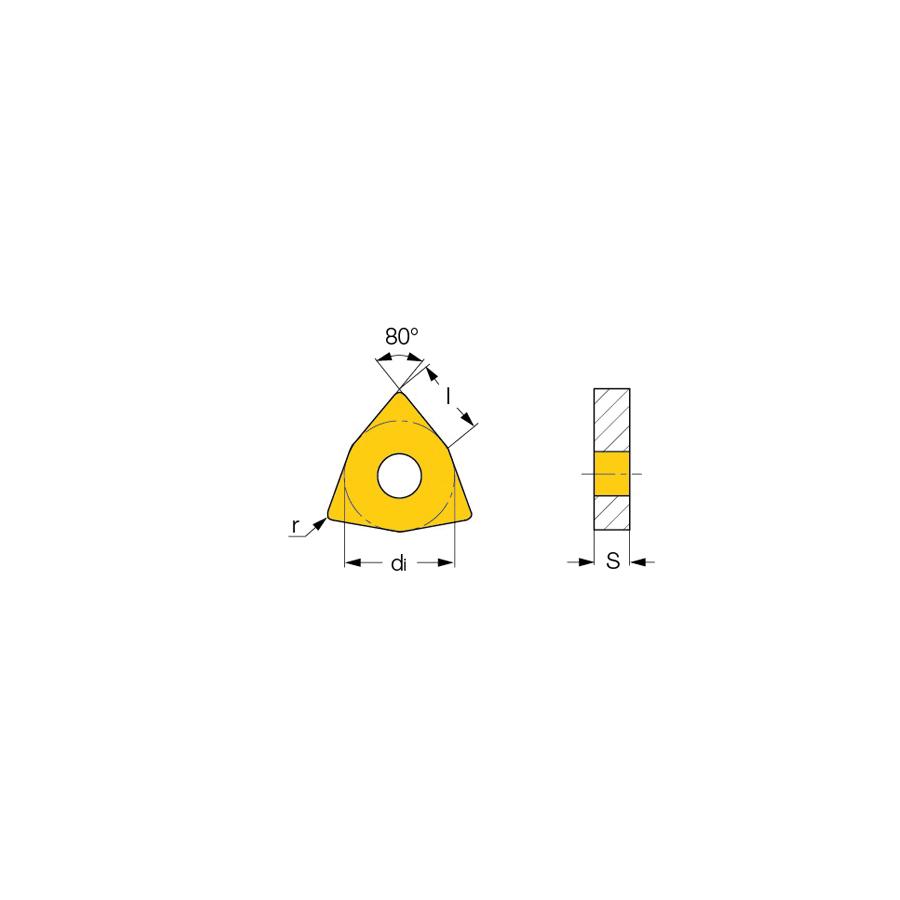

Iscar Turning Insert 2-Sided Series: ISOTURN WNMG Insert 333 Insert Trigon 3.5 mm Maximum Depth of Cut 9.52 mm Inscribed Circle 4.76 mm Thickness 06 Seat Positive Rake M3M Chipbreaker 1.2 mm Corner Radius 3.81 mm Hole Dia Manufacturer's Grade: IC6015 ANSI Code: WNMG 333-M3M IC6015 ISO Code: WNMG 060412-M3M IC6015 80 deg Included Angle 0 deg Relief Angle Carbide CVD-TiCN+Al2O3+TiN Coated Material Grade: M For Use On: Stainless Steel
Additional details
Product details
- First choice for machining stainless and low carbon steel Positive rake angle low cutting forces providing very reliable performance and excellent tool life IC6015 grade used for finishing and medium turning of stainless steel at high cutting speed Features long tool life and excellent repeatability Chipbreaker on both sides with hole
Attributes
- Corner Radius: 1.2 mm
- Finish: CVD-TiCN+Al2O3+TiN Coated
- Insert Size: 333
- Insert Style: WNMG
- ISO Code: WNMG 060412-M3M IC6015
- Manufacturer's Grade: IC6015
- Material: Carbide
- Material Grade: M
- Series: ISOTURN
- Shape: Trigon
