ISCA-5506626

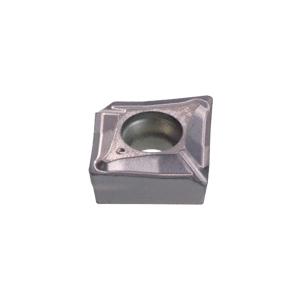

Iscar 5506626 Indexable Drill Insert Special Parallelogram Shape 70304 Insert XCMT Insert 3.18 mm THK 7.5 mm Inscribed Circle Manufacturer's Grade: IC908
Product information
Description

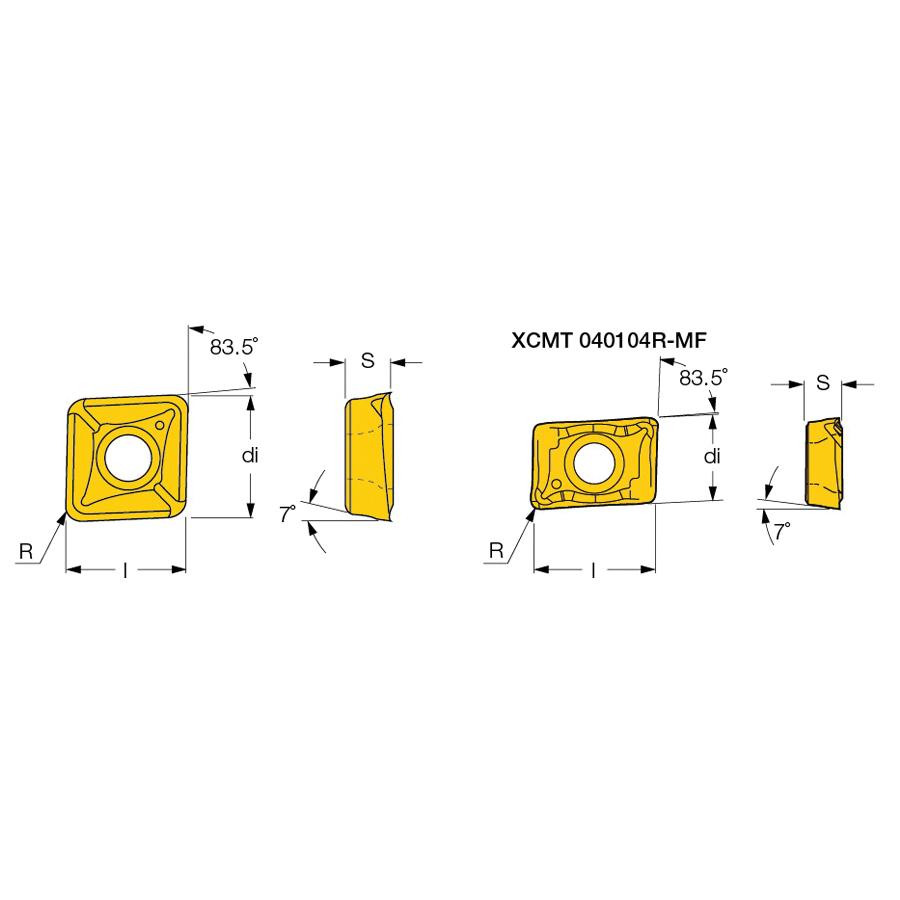

Iscar Indexable Drill Insert XCMT Insert 70304 Insert Special Parallelogram 7.5 mm Inscribed Circle 3.18 mm Thickness 7.5 mm Length MF Chipbreaker 0.4 mm Corner Radius Manufacturer's Grade: IC908 83.5 deg Included Angle ISO Code: XCMT 070304-MF IC908 Carbide PVD Coated
Additional details
Product details
- Two cutting edges for hard materials and interrupted cut Low cutting forces due to high cutting edges and positive angles Grade IC908 - a hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions
Attributes
- Corner Radius: 0.4 mm
- Finish: PVD Coated
- Insert Size: 70304
- Insert Style: XCMT
- ISO Code: XCMT 070304-MF IC908
- Manufacturer's Grade: IC908
- Material: Carbide
- Shape: Special Parallelogram
