ISCA-5506614

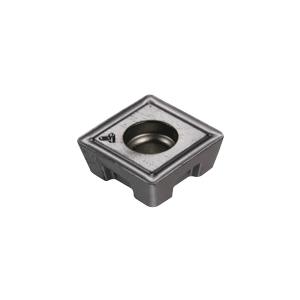

Iscar 5506614 DR-TWIST Single Sided Indexable Drill Insert Squared Shape Material Grade: K P 09T306 Insert SOMT Insert 3.81 mm THK 9 mm Inscribed Circle Manufacturer's Grade: IC9080
Product information
Description
Iscar Indexable Drill Insert Single Sided Series: DR-TWIST SOMT Insert 09T306 Insert Squared 9 mm Inscribed Circle 3.81 mm Thickness 9 mm Width 9 mm Length DT Chipbreaker 0.6 mm Corner Radius Manufacturer's Grade: IC9080 90 deg Included Angle ISO Code: SOMT 09T306-DT IC9080 Carbide CVD-TiCN+Al2O3+TiN Coated Material Grade: K P
Additional details
Product details
- Grade IC9080 - a hard fine grain substrate with MTCVD alpha Al2O3 coating Excellent chipping and wear resistance Recommended for high speed drilling of cast iron and steel to be used for the peripheral insert on DR drills
Attributes
- Corner Radius: 0.6 mm
- Finish: CVD-TiCN+Al2O3+TiN Coated
- Insert Size: 09T306
- Insert Style: SOMT
- ISO Code: SOMT 09T306-DT IC9080
- Manufacturer's Grade: IC9080
- Material: Carbide
- Material Grade: K P
- Series: DR-TWIST
- Shape: Squared
