ISCA-5506612

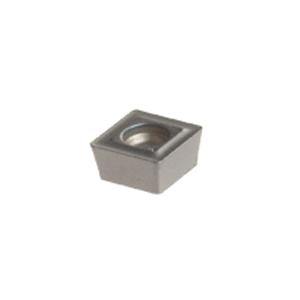

Iscar 5506612 DR-TWIST Indexable Drill Insert Squared Shape 60304 Insert SOMX Insert 3.2 mm THK 6.2 mm Inscribed Circle Manufacturer's Grade: IC9080
Product information
Description
Iscar Indexable Drill Insert Series: DR-TWIST SOMX Insert 60304 Insert Squared Shape 6.2 mm Inscribed Circle 3.2 mm Thickness 6.2 mm Width 6.2 mm Length DT Chipbreaker 0.4 mm Corner Radius Manufacturer's Grade: IC9080 90 deg Included Angle ISO Code: SOMX 060304-DT IC9080 Carbide CVD-TiCN+Al2O3+TiN Coated
Additional details
Product details
- Grade IC9080 - a hard fine grain substrate with MTCVD alpha Al2O3 coating Excellent chipping and wear resistance Recommended for high speed drilling of cast iron and steel to be used for the peripheral insert on DR drills
Attributes
- Corner Radius: 0.4 mm
- Finish: CVD-TiCN+Al2O3+TiN Coated
- Insert Size: 60304
- Insert Style: SOMX
- ISO Code: SOMX 060304-DT IC9080
- Manufacturer's Grade: IC9080
- Material: Carbide
- Series: DR-TWIST
- Shape: Squared
