ISCA-5506344
Iscar 5506344 HELITURN Tangential Turning Insert ANSI Code: LNMX 110408R-HT IC908 LNMX Insert Material Grade: H K M P S 110408 Insert Rectangle Shape 11 Seat Positive Rake Right Hand Cutting Carbide Manufacturer's Grade: IC908
Product information
Description

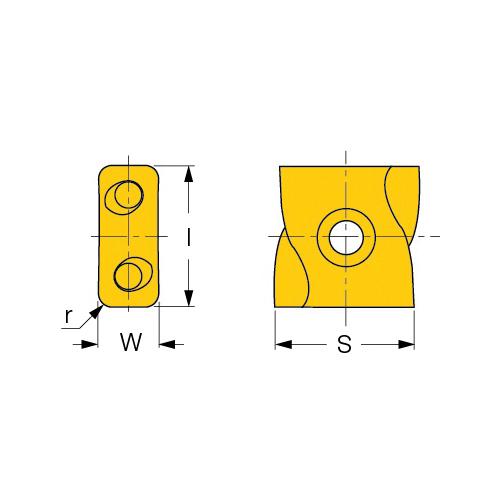

Iscar Turning Insert Tangential Series: HELITURN LNMX Insert 110408 Insert Rectangle Shape 11.4 mm Thickness 4.75 mm Width 11 mm Length 11 Seat Positive Rake HT Chipbreaker 0.8 mm Corner Radius Manufacturer's Grade: IC908 ANSI Code: LNMX 110408R-HT IC908 ISO Code: LNMX 110408R-HT IC908 90 deg Included Angle 0 deg Relief Angle Right Hand Cutting Direction Carbide PVD-TiAlN Coated Material Grade: H K M P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel and High Temperature Alloys
Additional details
Product details
- 4 cutting edges Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions
Attributes
- Corner Radius: 0.8 mm
- Finish: PVD-TiAlN Coated
- Insert Size: 110408
- Insert Style: LNMX
- ISO Code: LNMX 110408R-HT IC908
- Manufacturer's Grade: IC908
- Material: Carbide
- Material Grade: H K M P S
- Series: HELITURN
- Shape: Rectangle
