ISCA-5506338

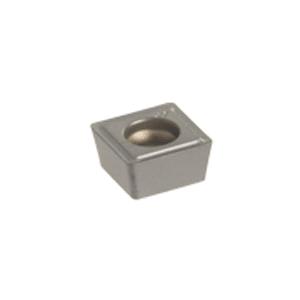

Iscar 5506338 DR-TWIST Indexable Drill Insert Squared Shape Material Grade: C1 C2 C6 C7 50204 Insert SOMX Insert 2.4 mm THK 5.4 mm Inscribed Circle For Use On Soft Materials Manufacturer's Grade: IC908
Product information
Description
Iscar Indexable Drill Insert Series: DR-TWIST SOMX Insert 50204 Insert Squared Shape 5.4 mm Inscribed Circle 2.4 mm Thickness 5.4 mm Width 5.4 mm Length GF Chipbreaker 0.4 mm Corner Radius Manufacturer's Grade: IC908 90 deg Included Angle ISO Code: SOMX 050204-GF IC908 For Use On: Soft Materials Carbide PVD-TiAlN Coated Material Grade: C1 C2 C6 C7
Additional details
Product details
- Grade IC908 - a hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions
Attributes
- Corner Radius: 0.4 mm
- Finish: PVD-TiAlN Coated
- Insert Size: 50204
- Insert Style: SOMX
- ISO Code: SOMX 050204-GF IC908
- Manufacturer's Grade: IC908
- Material: Carbide
- Material Grade: C1 C2 C6 C7
- Series: DR-TWIST
- Shape: Squared
