ISCA-5506327

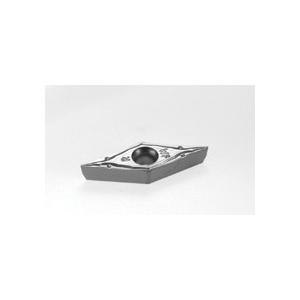

Iscar 5506327 ISOTURN 1-Sided Turning Insert ANSI Code: VCET 22.002 WF IC907 VCET Insert Material Grade: H K M N P S 22.002 Insert Rhombic Shape 11 Seat Right Hand Cutting Carbide Manufacturer's Grade: IC907
Product information
Description
Iscar Turning Insert 1-Sided Series: ISOTURN VCET Insert 22.002 Insert Rhombic 4 mm Maximum Depth of Cut 6.35 mm Inscribed Circle 3.18 mm Thickness 11 Seat WF Chipbreaker 0.05 mm Corner Radius 2.9 mm Hole Dia Manufacturer's Grade: IC907 ANSI Code: VCET 22.002 WF IC907 ISO Code: VCET 1103005R-WF IC907 35 deg Included Angle 7 deg Relief Angle Right Hand Cutting Carbide PVD-TiAlN+TiN Coated Material Grade: H K M N P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel High Temperature Alloys and Aluminum
Additional details
Product details
- Three to five times better surface finish compared to standard turning inserts at the same feeds IC907 grade a tough sub-micron substrate TiAlN PVD coated Suitable for low-to-medium cutting speeds Developed for machining of heat resistant alloys austenitic stainless steel and hard steel
Attributes
- Corner Radius: 0.05 mm
- Finish: PVD-TiAlN+TiN Coated
- Insert Size: 22.002
- Insert Style: VCET
- ISO Code: VCET 1103005R-WF IC907
- Manufacturer's Grade: IC907
- Material: Carbide
- Material Grade: H K M N P S
- Series: ISOTURN
- Shape: Rhombic
