ISCA-5506326

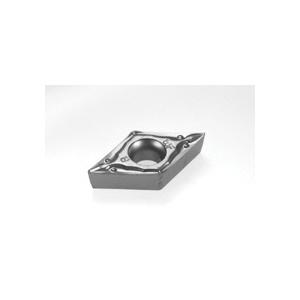

Iscar 5506326 1-Sided Turning Insert ANSI Code: DCET 3.002R WF IC907 DCET Insert Material Grade: H K M N P S 3.002 Insert Rhombic Shape 11 Seat Right Hand Cutting Carbide Manufacturer's Grade: IC907
Product information
Description

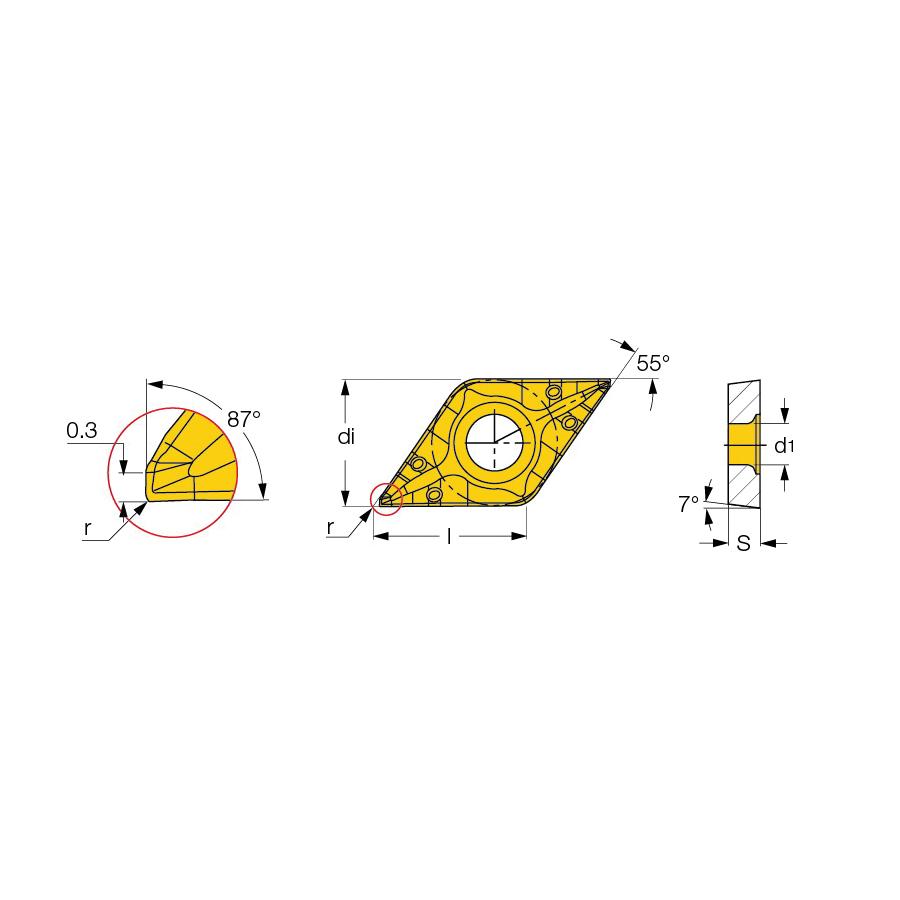

Iscar Turning Insert 1-Sided DCET Insert 3.002 Insert Rhombic 3 mm Maximum Depth of Cut 9.52 mm Inscribed Circle 3.97 mm Thickness 11 Seat WF Chipbreaker 0.05 mm Corner Radius 4.4 mm Hole Dia Manufacturer's Grade: IC907 ANSI Code: DCET 3.002R WF IC907 ISO Code: DCET 11T3005R-WF IC907 55 deg Included Angle 7 deg Relief Angle Right Hand Cutting Carbide PVD-TiAlN+TiN Coated Material Grade: H K M N P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel High Temperature Alloys and Aluminum
Additional details
Product details
- Three to five times better surface finish compared to standard turning inserts at the same feeds IC907 grade a tough sub-micron substrate TiAlN PVD coated Suitable for low-to-medium cutting speeds Developed for machining of heat resistant alloys austenitic stainless steel and hard steel
Attributes
- Corner Radius: 0.05 mm
- Finish: PVD-TiAlN+TiN Coated
- Insert Size: 3.002
- Insert Style: DCET
- ISO Code: DCET 11T3005R-WF IC907
- Manufacturer's Grade: IC907
- Material: Carbide
- Material Grade: H K M N P S
- Shape: Rhombic
