ISCA-5506325

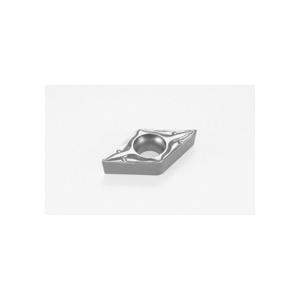

Iscar 5506325 ISOTURN Turning Insert ANSI Code: DCET 2-.002R-WF IC907 DCET Insert Material Grade: H K M N P S 2-.002 Insert Rhombic Shape 07 Seat Right Hand Cutting Carbide Manufacturer's Grade: IC907
Product information
Description
Iscar Turning Insert Series: ISOTURN DCET Insert 2-.002 Insert Rhombic 3 mm Maximum Depth of Cut 6.35 mm Inscribed Circle 2.38 mm Thickness 07 Seat WF Chipbreaker 0.05 mm Corner Radius 2.8 mm Hole Dia Manufacturer's Grade: IC907 ANSI Code: DCET 2-.002R-WF IC907 ISO Code: DCET 0702005R-WF IC907 55 deg Included Angle 7 deg Relief Angle Right Hand Cutting Carbide PVD-TiAlN+TiN Coated Material Grade: H K M N P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel High Temperature Alloys and Aluminum
Additional details
Product details
- Three to five times better surface finish compared to standard turning inserts at the same feeds Suitable for low-to-medium cutting speeds Chipbreaker on one side with hole and countersink
Attributes
- Corner Radius: 0.05 mm
- Finish: PVD-TiAlN+TiN Coated
- Insert Size: 2-.002
- Insert Style: DCET
- ISO Code: DCET 0702005R-WF IC907
- Manufacturer's Grade: IC907
- Material: Carbide
- Material Grade: H K M N P S
- Series: ISOTURN
- Shape: Rhombic
