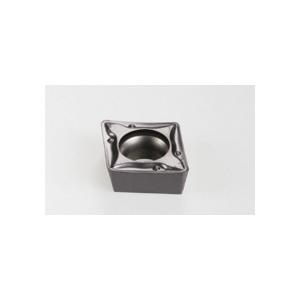

Iscar 5505916 ISOTURN 1-Sided Turning Insert ANSI Code: CPMT 3-2-PF IC907 CPMT Insert Material Grade: H K M N P S 3-2 Insert Rhombic Shape 09 Seat Positive Rake Carbide Manufacturer's Grade: IC907

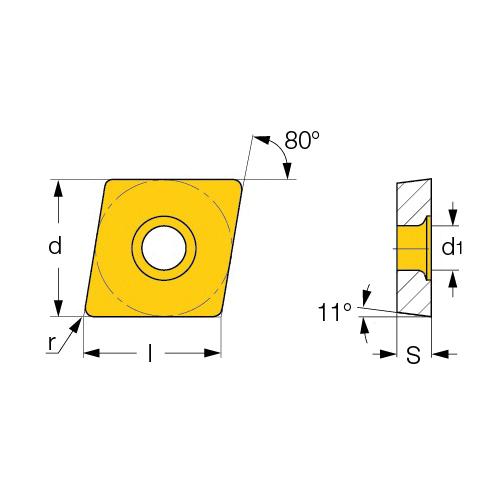

Iscar Turning Insert 1-Sided Series: ISOTURN CPMT Insert 3-2 Insert Rhombic 3.5 mm Maximum Depth of Cut 9.52 mm Inscribed Circle 3.97 mm Thickness 09 Seat Positive Rake PF Chipbreaker 0.8 mm Corner Radius 4.4 mm Hole Dia Manufacturer's Grade: IC907 ANSI Code: CPMT 3-2-PF IC907 ISO Code: CPMT 09T308-PF IC907 80 deg Included Angle 11 deg Relief Angle Carbide PVD-TiAlN+TiN Coated Material Grade: H K M N P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel High Temperature Alloys and Aluminum
