ISCA-5505906

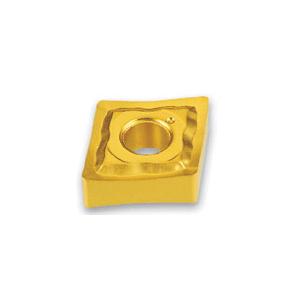

Iscar 5505906 ISOTURN 2-Sided Turning Insert ANSI Code: CNGG 643-PP IC907 CNGG Insert Material Grade: H K M N P S 643 Insert Rhombic Shape 19 Seat Positive Rake Carbide Manufacturer's Grade: IC907
Product information
Description
Iscar Turning Insert 2-Sided Series: ISOTURN CNGG Insert 643 Insert Rhombic 9 mm Maximum Depth of Cut 19.05 mm Inscribed Circle 6.35 mm Thickness 19 Seat Positive Rake PP Chipbreaker 1.2 mm Corner Radius Manufacturer's Grade: IC907 ANSI Code: CNGG 643-PP IC907 ISO Code: CNGG 190612-PP IC907 80 deg Included Angle 0 deg Relief Angle Carbide PVD-TiAlN+TiN Coated Material Grade: H K M N P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel High Temperature Alloys and Aluminum
Additional details
Product details
- Positive rake angle and sharp positive radial edge IC907 grade a tough sub-micron substrate TiAlN PVD coated Suitable for low-to-medium cutting speeds Developed for machining of heat resistant alloys austenitic stainless steel and hard steel
Attributes
- Corner Radius: 1.2 mm
- Finish: PVD-TiAlN+TiN Coated
- Insert Size: 643
- Insert Style: CNGG
- ISO Code: CNGG 190612-PP IC907
- Manufacturer's Grade: IC907
- Material: Carbide
- Material Grade: H K M N P S
- Series: ISOTURN
- Shape: Rhombic
