ISCA-5505850

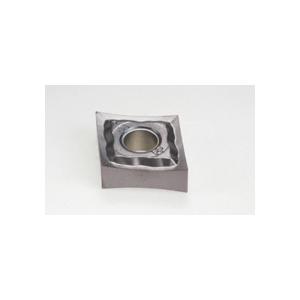

Iscar 5505850 ISOTURN 2-Sided Turning Insert ANSI Code: CNGG 430.5-PP IC907 CNGG Insert Material Grade: H K M N P S 430.5 Insert Rhombic Shape 12 Seat Positive Rake Carbide Manufacturer's Grade: IC907
Product information
Description

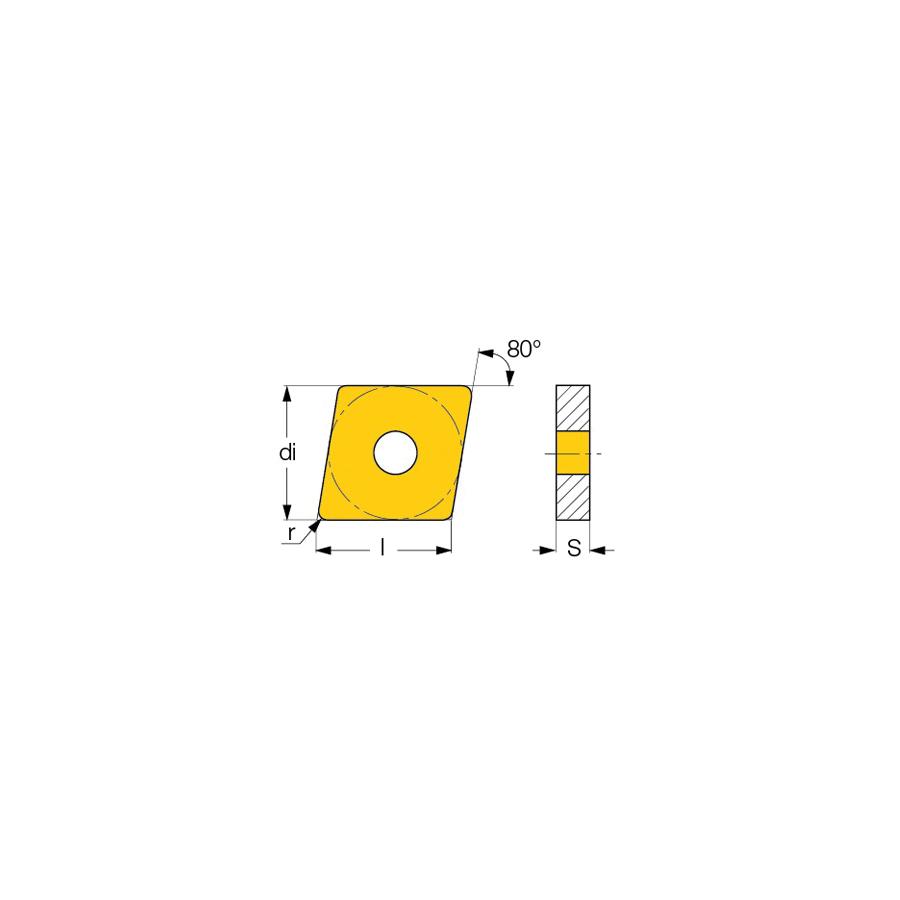

Iscar Turning Insert 2-Sided Series: ISOTURN CNGG Insert 430.5 Insert Rhombic 2.5 mm Maximum Depth of Cut 12.7 mm Inscribed Circle 4.76 mm Thickness 12 Seat Positive Rake PP Chipbreaker 0.2 mm Corner Radius 5.1562 mm Hole Dia Manufacturer's Grade: IC907 ANSI Code: CNGG 430.5-PP IC907 ISO Code: CNGG 120402-PP IC907 80 deg Included Angle 0 deg Relief Angle Carbide PVD-TiAlN+TiN Coated Material Grade: H K M N P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel High Temperature Alloys and Aluminum
Additional details
Product details
- Positive rake angle and sharp positive radial edge Used for machining very ductile materials such as aluminum alloys soft low carbon steel stainless steel and high temperature alloys IC907 grade developed for machining of heat resistant alloys austenitic stainless steel and hard steel Suitable for low-to-medium cutting speeds Chipbreaker on both sides with hole
Attributes
- Corner Radius: 0.2 mm
- Finish: PVD-TiAlN+TiN Coated
- Insert Size: 430.5
- Insert Style: CNGG
- ISO Code: CNGG 120402-PP IC907
- Manufacturer's Grade: IC907
- Material: Carbide
- Material Grade: H K M N P S
- Series: ISOTURN
- Shape: Rhombic
