ISCA-5505753

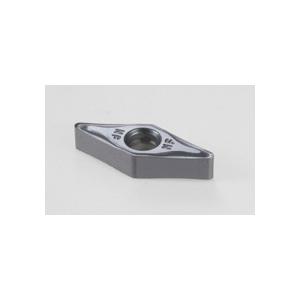

Iscar 5505753 2-Sided Turning Insert ANSI Code: VNMG 2.5 2 NF IC907 VNMG Insert Material Grade: H K M N P S 2.5-2 Insert Rhombic Shape 12 Seat Positive Rake Carbide Manufacturer's Grade: IC907
Product information
Description
Iscar Turning Insert 2-Sided VNMG Insert 2.5-2 Insert Rhombic 3 mm Maximum Depth of Cut 7.15 mm Inscribed Circle 3.97 mm Thickness 12 Seat Positive Rake NF Chipbreaker 0.8 mm Corner Radius 0.11 in Hole Dia Manufacturer's Grade: IC907 ANSI Code: VNMG 2.5 2 NF IC907 ISO Code: VNMG 12T308-NF IC907 35 deg Included Angle 0 deg Relief Angle Carbide PVD-TiAlN+TiN Coated Material Grade: H K M N P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel High Temperature Alloys and Aluminum
Additional details
Product details
- Low cutting forces due to very sharp edge and positive rake IC907 grade a tough sub-micron substrate TiAlN PVD coated Suitable for low-to-medium cutting speeds Developed for machining of heat resistant alloys austenitic stainless steel and hard steel
Attributes
- Corner Radius: 0.8 mm
- Finish: PVD-TiAlN+TiN Coated
- Insert Size: 2.5-2
- Insert Style: VNMG
- ISO Code: VNMG 12T308-NF IC907
- Manufacturer's Grade: IC907
- Material: Carbide
- Material Grade: H K M N P S
- Shape: Rhombic
