ISCA-5505573
Iscar 5505573 ISOTURN Turning Insert ANSI Code: TPGX 220-L IC908 TPGX Insert Material Grade: H K M P S 220 Insert Triangular Shape 11 Seat Positive Rake Left Hand Cutting Carbide Manufacturer's Grade: IC908
Product information
Description

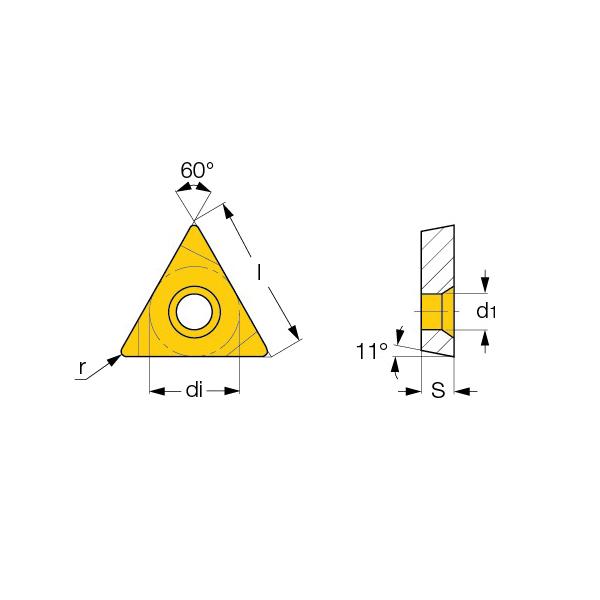

Iscar Turning Insert Series: ISOTURN TPGX Insert 220 Insert Triangular 2.5 mm Maximum Depth of Cut 6.35 mm Inscribed Circle 3.18 mm Thickness 11 Seat Positive Rake L Chipbreaker 0.2 mm Corner Radius 3.5 mm Hole Dia Manufacturer's Grade: IC908 ANSI Code: TPGX 220-L IC908 ISO Code: TPGX 110302-L IC908 60 deg Included Angle 11 deg Relief Angle Left Hand Cutting Carbide PVD-TiAlN Coated Material Grade: H K M P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel and High Temperature Alloys
Additional details
Product details
- Positive flank inserts with a ground chipformer Provides excellent surface finish IC908 grade a hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions
Attributes
- Corner Radius: 0.2 mm
- Finish: PVD-TiAlN Coated
- Insert Size: 220
- Insert Style: TPGX
- ISO Code: TPGX 110302-L IC908
- Manufacturer's Grade: IC908
- Material: Carbide
- Material Grade: H K M P S
- Series: ISOTURN
- Shape: Triangular
