ISCA-5505520
Iscar 5505520 2-Sided Turning Insert ANSI Code: WNMG 431 PP IC907 WNMG Insert Material Grade: H K M N P S 431 Insert Trigon Shape 08 Seat Positive Rake Carbide Manufacturer's Grade: IC907
Product information
Description

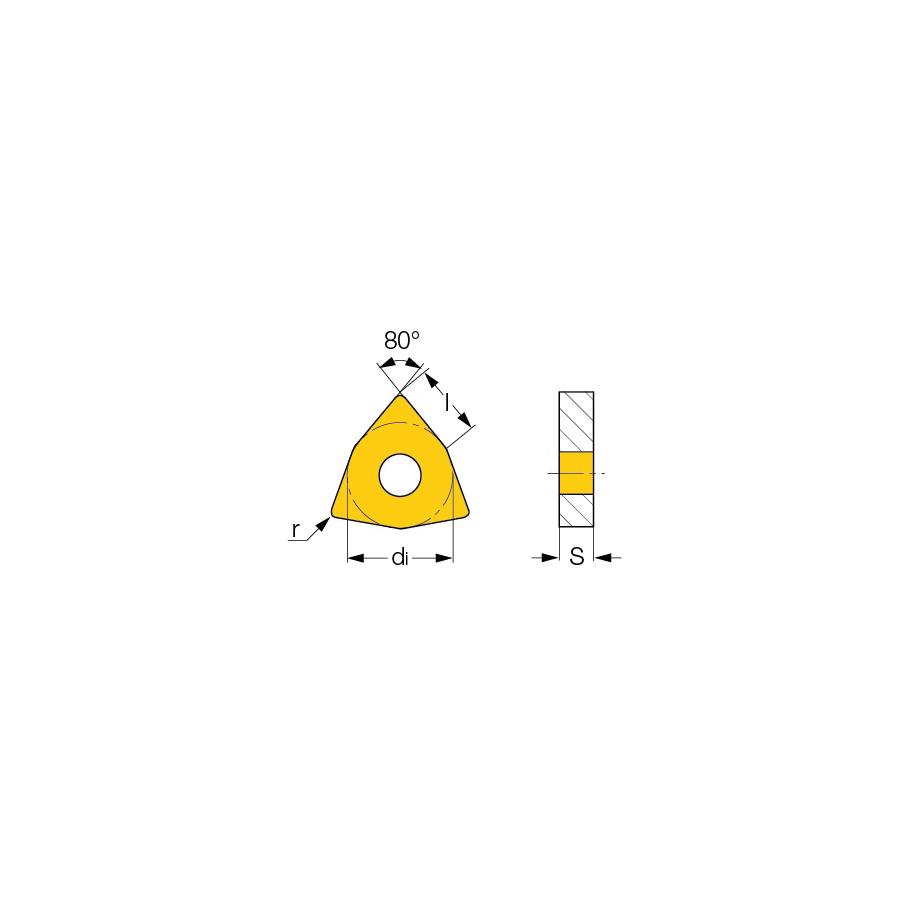

Iscar Turning Insert 2-Sided WNMG Insert 431 Insert Trigon 3.5 mm Maximum Depth of Cut 12.7 mm Inscribed Circle 4.76 mm Thickness 08 Seat Positive Rake PP Chipbreaker 0.4 mm Corner Radius 0.203 in Hole Dia Manufacturer's Grade: IC907 ANSI Code: WNMG 431 PP IC907 ISO Code: WNMG 080404-PP IC907 80 deg Included Angle 0 deg Relief Angle Carbide PVD-TiAlN+TiN Coated Material Grade: H K M N P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel High Temperature Alloys and Aluminum
Additional details
Product details
- Positive rake angle and sharp positive radial edge IC907 grade a tough sub-micron substrate TiAlN PVD coated Suitable for low-to-medium cutting speeds Developed for machining of heat resistant alloys austenitic stainless steel and hard steel
Attributes
- Corner Radius: 0.4 mm
- Finish: PVD-TiAlN+TiN Coated
- Insert Size: 431
- Insert Style: WNMG
- ISO Code: WNMG 080404-PP IC907
- Manufacturer's Grade: IC907
- Material: Carbide
- Material Grade: H K M N P S
- Shape: Trigon
