ISCA-5505462
Iscar 5505462 ISOTURN 2-Sided Turning Insert ANSI Code: WNMG 431FT IC907 DNGG Insert Material Grade: H K M N P S 431 Insert Rhombic Shape 15 Seat Positive Rake Carbide Manufacturer's Grade: IC907
Product information
Description

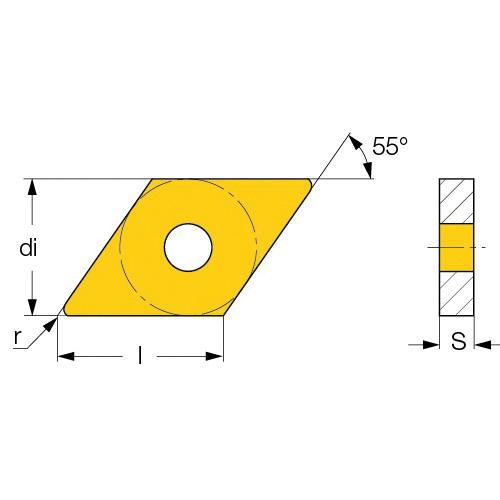

Iscar Turning Insert 2-Sided Series: ISOTURN DNGG Insert 431 Insert Rhombic 12.7 mm Inscribed Circle 4.76 mm Thickness 15 Seat Positive Rake TF Chipbreaker 0.4 mm Corner Radius Manufacturer's Grade: IC907 ANSI Code: WNMG 431FT IC907 ISO Code: DNGG 150404-TF IC907 55 deg Included Angle 0 deg Relief Angle Carbide PVD-TiAlN+TiN Coated Material Grade: H K M N P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel High Temperature Alloys and Aluminum
Additional details
Product details
- Positive rake angle that varies along the edge to negative in order to prevent chipping Special design reduces cratering IC907 grade a tough sub-micron substrate TiAlN PVD coated Suitable for low-to-medium cutting speeds Developed for machining of heat resistant alloys austenitic stainless steel and hard steel
Attributes
- Corner Radius: 0.4 mm
- Finish: PVD-TiAlN+TiN Coated
- Insert Size: 431
- Insert Style: DNGG
- ISO Code: DNGG 150404-TF IC907
- Manufacturer's Grade: IC907
- Material: Carbide
- Material Grade: H K M N P S
- Series: ISOTURN
- Shape: Rhombic
