ISCA-5505423

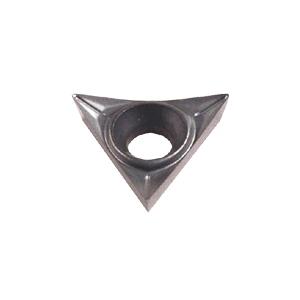

Iscar 5505423 ISOTURN 1-Sided Turning Insert ANSI Code: TPGT 2-0-SP IC908 TPGT Insert Material Grade: H K M P S 2-0 Insert Triangular Shape 11 Seat For Use On Stainless Steel Steel Cast Iron Hardened Steel and High Temperature Alloys Carbide
Product information
Description
Iscar Turning Insert 1-Sided Series: ISOTURN TPGT Insert 2-0 Insert Triangular 1 mm Maximum Depth of Cut 6.35 mm Inscribed Circle 2.38 mm Thickness 11 Seat SP Chipbreaker 0.2 mm Corner Radius 3 mm Hole Dia Manufacturer's Grade: IC908 ANSI Code: TPGT 2-0-SP IC908 ISO Code: TPGT 110202-SP IC908 60 deg Included Angle 11 deg Relief Angle Carbide PVD-TiAlN Coated Material Grade: H K M P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel and High Temperature Alloys
Additional details
Product details
- IC908 grade a hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions
Attributes
- Corner Radius: 0.2 mm
- Finish: PVD-TiAlN Coated
- Insert Size: 2-0
- Insert Style: TPGT
- ISO Code: TPGT 110202-SP IC908
- Manufacturer's Grade: IC908
- Material: Carbide
- Material Grade: H K M P S
- Series: ISOTURN
- Shape: Triangular
