ISCA-5505376
Iscar 5505376 ISOTURN 2-Sided Turning Insert ANSI Code: CNMG 432-NR IC907 CNMG Insert Material Grade: H K M N P S 432 Insert Rhombic Shape 12 Seat Carbide Manufacturer's Grade: IC907
Product information
Description
Iscar Turning Insert 2-Sided Series: ISOTURN CNMG Insert 432 Insert Rhombic 5 mm Maximum Depth of Cut 12.7 mm Inscribed Circle 4.76 mm Thickness 12 Seat NR Chipbreaker 0.8 mm Corner Radius Manufacturer's Grade: IC907 ANSI Code: CNMG 432-NR IC907 ISO Code: CNMG 120408-NR IC907 80 deg Included Angle 0 deg Relief Angle Carbide PVD-TiAlN+TiN Coated Material Grade: H K M N P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel High Temperature Alloys and Aluminum
Additional details
Product details

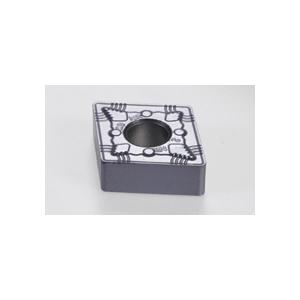

- Double-sided 80 deg rhombic inserts with a special chipformer for heavy machining Developed for machining of heat resistant alloys austenitic stainless steel and hard steel Chipbreaker on both sides with hole
Attributes
- Corner Radius: 0.8 mm
- Finish: PVD-TiAlN+TiN Coated
- Insert Size: 432
- Insert Style: CNMG
- ISO Code: CNMG 120408-NR IC907
- Manufacturer's Grade: IC907
- Material: Carbide
- Material Grade: H K M N P S
- Series: ISOTURN
- Shape: Rhombic
