ISCA-5505289

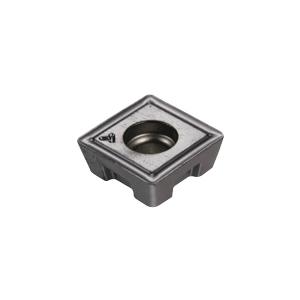

Iscar 5505289 DR-TWIST Indexable Drill Insert Squared Shape Material Grade: C1 C2 C6 C7 120408 Insert SOMT Insert 0.187 in THK 1/2 in Inscribed Circle Manufacturer's Grade: IC908
Product information
Description

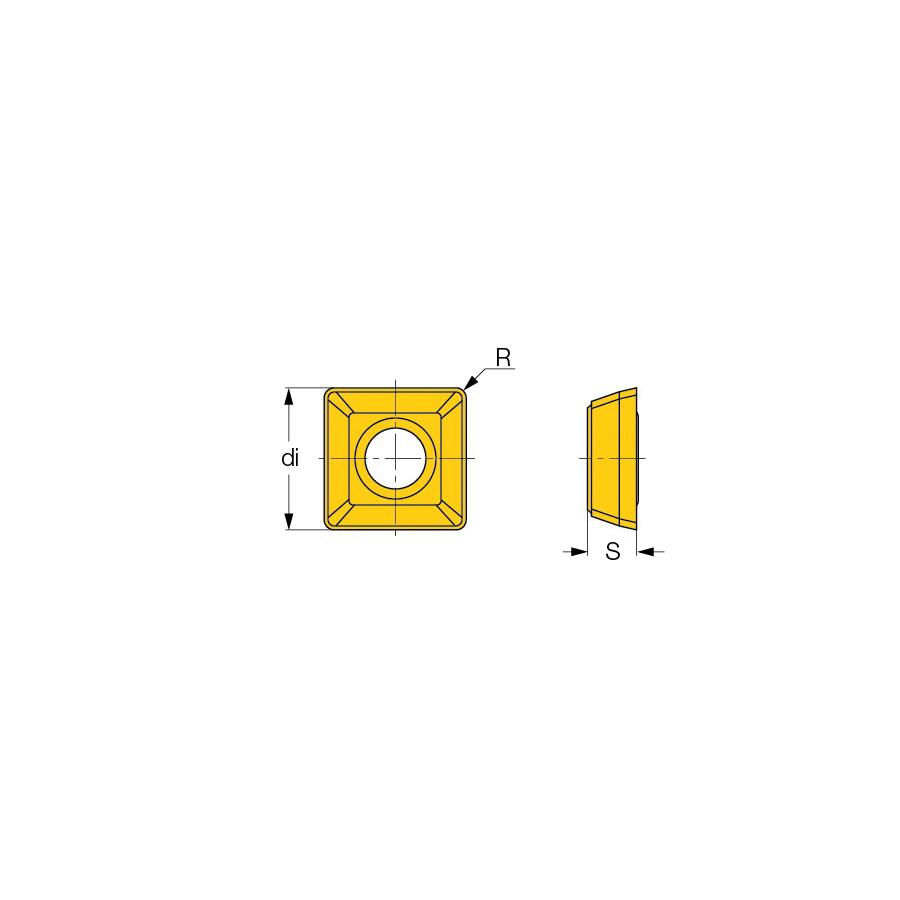

Iscar Indexable Drill Insert Series: DR-TWIST SOMT Insert 120408 Insert Squared 1/2 in Inscribed Circle 0.187 in Thickness 1/2 in Width 1/2 in Length DT Chipbreaker 0.031 in Corner Radius Manufacturer's Grade: IC908 90 deg Included Angle ISO Code: SOMT 120408-DT IC908 Carbide PVD-TiAlN Coated Material Grade: C1 C2 C6 C7
Additional details
Product details
- Grade IC908 - a hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions
Attributes
- Corner Radius: 0.031 in
- Finish: PVD-TiAlN Coated
- Insert Size: 120408
- Insert Style: SOMT
- ISO Code: SOMT 120408-DT IC908
- Manufacturer's Grade: IC908
- Material: Carbide
- Material Grade: C1 C2 C6 C7
- Series: DR-TWIST
- Shape: Squared
