ISCA-5505277

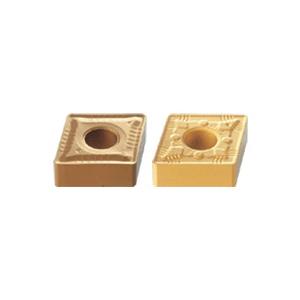

Iscar 5505277 ISOTURN 2-Sided Turning Insert ANSI Code: CNMG 432-WG IC520N CNMG Insert Material Grade: M P 432 Insert Rhombic Shape 12 Seat For Use On Stainless Steel and Steel Cermet Manufacturer's Grade: IC520N
Product information
Description
Iscar Turning Insert 2-Sided Series: ISOTURN CNMG Insert 432 Insert Rhombic 3.5 mm Maximum Depth of Cut 12.7 mm Inscribed Circle 4.76 mm Thickness 12 Seat WG Chipbreaker 0.8 mm Corner Radius Manufacturer's Grade: IC520N ANSI Code: CNMG 432-WG IC520N ISO Code: CNMG 120408-WG IC520N 80 deg Included Angle 0 deg Relief Angle Cermet PVD-TiCN+TiN Coated Material Grade: M P For Use On: Stainless Steel and Steel
Additional details
Product details
- Three to five times better surface finish compared to standard turning inserts at the same feeds IC520N grade a cermet grade TiCN and TiN PVD coated Used for high speed semi-finishing and finishing applications with excellent surface finish Wear resistant prevents built-up edge
Attributes
- Corner Radius: 0.8 mm
- Finish: PVD-TiCN+TiN Coated
- Insert Size: 432
- Insert Style: CNMG
- ISO Code: CNMG 120408-WG IC520N
- Manufacturer's Grade: IC520N
- Material: Cermet
- Material Grade: M P
- Series: ISOTURN
- Shape: Rhombic
