ISCA-5505233

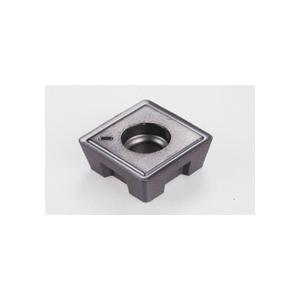

Iscar 5505233 DR-TWIST Single Sided Indexable Drill Insert Squared Shape Material Grade: C1 C2 C6 C7 120408 Insert SOMT Insert 4.76 mm THK 12.7 mm Inscribed Circle For Use On Soft Materials Manufacturer's Grade: IC908
Product information
Description
Iscar Indexable Drill Insert Single Sided Series: DR-TWIST SOMT Insert 120408 Insert Squared 12.7 mm Inscribed Circle 4.76 mm Thickness 12.7 mm Width 12.7 mm Length GF Chipbreaker 0.8 mm Corner Radius 0.22 in Hole Dia Manufacturer's Grade: IC908 90 deg Included Angle ISO Code: SOMT 120408-GF IC908 Soft Materials For Use On Carbide PVD-TiAlN Coated Material Grade: C1 C2 C6 C7
Additional details
Product details
- Grade IC908 - a hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions
Attributes
- Corner Radius: 0.8 mm
- Finish: PVD-TiAlN Coated
- Insert Size: 120408
- Insert Style: SOMT
- ISO Code: SOMT 120408-GF IC908
- Manufacturer's Grade: IC908
- Material: Carbide
- Material Grade: C1 C2 C6 C7
- Series: DR-TWIST
- Shape: Squared
