ISCA-5505130

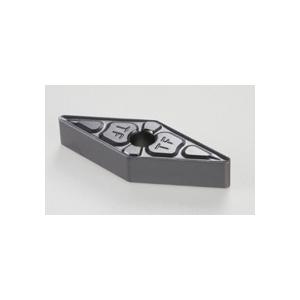

Iscar 5505130 2-Sided Turning Insert ANSI Code: VNMG332TF IC907 VNMG Insert Material Grade: H K M N P S 332 Insert Rhombic Shape 16 Seat Positive Rake Carbide Manufacturer's Grade: IC907
Product information
Description

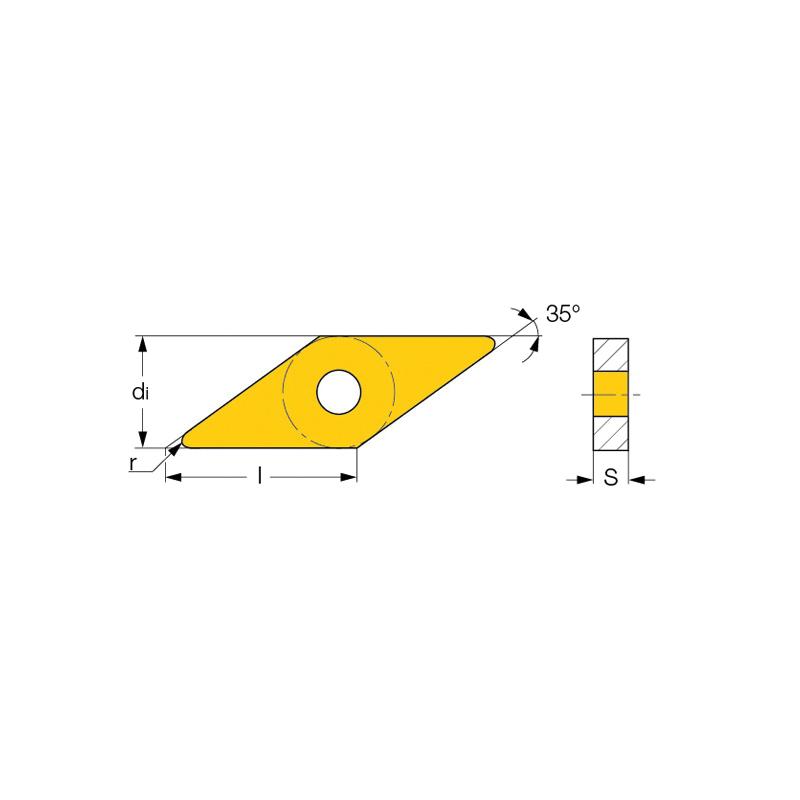

Iscar Turning Insert 2-Sided VNMG Insert 332 Insert Rhombic 3.5 mm Maximum Depth of Cut 9.52 mm Inscribed Circle 4.76 mm Thickness 16 Seat Positive Rake TF Chipbreaker 0.8 mm Corner Radius 0.15 in Hole Dia Manufacturer's Grade: IC907 ANSI Code: VNMG332TF IC907 ISO Code: VNMG 160408-TF IC907 35 deg Included Angle 0 deg Relief Angle Carbide PVD-TiAlN+TiN Coated Material Grade: H K M N P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel High Temperature Alloys and Aluminum
Additional details
Product details
- Positive rake angle that varies along the edge to negative in order to prevent chipping Special design reduces cratering IC907 grade a tough sub-micron substrate TiAlN PVD coated Suitable for low-to-medium cutting speeds Developed for machining of heat resistant alloys austenitic stainless steel and hard steel
Attributes
- Corner Radius: 0.8 mm
- Finish: PVD-TiAlN+TiN Coated
- Insert Size: 332
- Insert Style: VNMG
- ISO Code: VNMG 160408-TF IC907
- Manufacturer's Grade: IC907
- Material: Carbide
- Material Grade: H K M N P S
- Shape: Rhombic
