ISCA-5505126

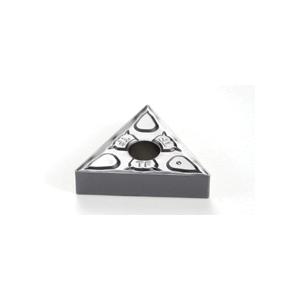

Iscar 5505126 ISOTURN 2-Sided Turning Insert ANSI Code: TNMG 431-TF IC907 TNMG Insert Material Grade: H K M N P S 431 Insert Triangular Shape 22 Seat Positive Rake Carbide Manufacturer's Grade: IC907
Product information
Description
Iscar Turning Insert 2-Sided Series: ISOTURN TNMG Insert 431 Insert Triangular 3.5 mm Maximum Depth of Cut 12.7 mm Inscribed Circle 4.76 mm Thickness 22 Seat Positive Rake TF Chipbreaker 0.4 mm Corner Radius 5.1562 mm Hole Dia Manufacturer's Grade: IC907 ANSI Code: TNMG 431-TF IC907 ISO Code: TNMG 220404-TF IC907 60 deg Included Angle 0 deg Relief Angle Carbide PVD-TiAlN+TiN Coated Material Grade: H K M N P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel High Temperature Alloys and Aluminum
Additional details
Product details
- Positive rake angle that varies along the edge to negative in order to prevent chipping Special design reduces cratering Used for carbon and alloy steel stainless steel and high temperature alloys IC907 grade developed for machining of heat resistant alloys austenitic stainless steel and hard steel Suitable for low-to-medium cutting speeds Chipbreaker on both sides with hole
Attributes
- Corner Radius: 0.4 mm
- Finish: PVD-TiAlN+TiN Coated
- Insert Size: 431
- Insert Style: TNMG
- ISO Code: TNMG 220404-TF IC907
- Manufacturer's Grade: IC907
- Material: Carbide
- Material Grade: H K M N P S
- Series: ISOTURN
- Shape: Triangular
