ISCA-5504980

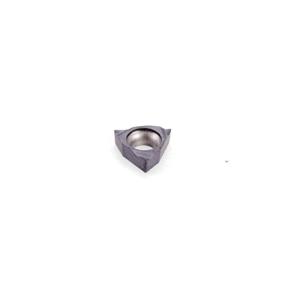

Iscar 5504980 ISOTURN Turning Insert ANSI Code: WBGT 520-L IC908 WBGT Insert Material Grade: H K M P S 520 Insert Trigon Shape 06 Seat Positive Rake Left Hand Cutting Carbide Manufacturer's Grade: IC908
Product information
Description

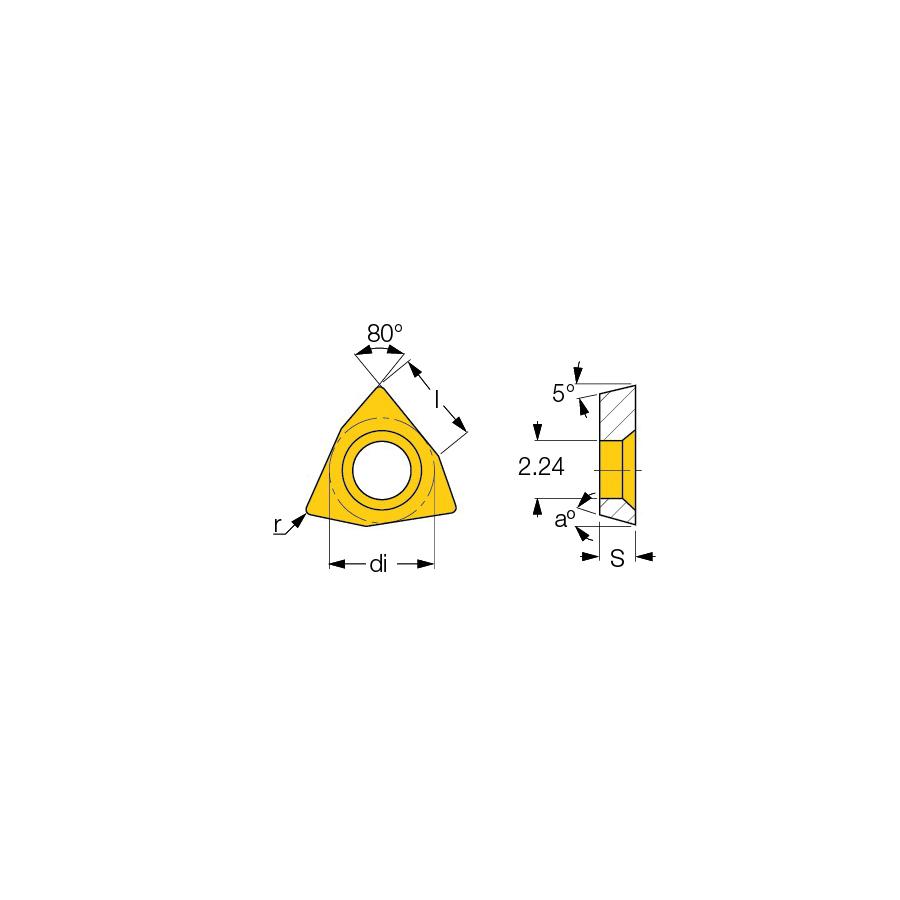

Iscar Turning Insert Series: ISOTURN WBGT Insert 520 Insert Trigon 1 mm Maximum Depth of Cut 3.97 mm Inscribed Circle 1.59 mm Thickness 06 Seat Positive Rake L Chipbreaker 0.2 mm Corner Radius 2.24 mm Hole Dia Manufacturer's Grade: IC908 ANSI Code: WBGT 520-L IC908 ISO Code: WBGT 060102L IC908 80 deg Included Angle 5 deg Relief Angle Left Hand Cutting Carbide PVD-TiAlN Coated Material Grade: H K M P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel and High Temperature Alloys
Additional details
Product details
- Positive flank inserts with a ground chipformer Used for finishing on miniature boring bars provide excellent surface finish Suitable for a wide range of materials IC908 grade provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions Chipbreaker on one side with hole and countersink
Attributes
- Corner Radius: 0.2 mm
- Finish: PVD-TiAlN Coated
- Insert Size: 520
- Insert Style: WBGT
- ISO Code: WBGT 060102L IC908
- Manufacturer's Grade: IC908
- Material: Carbide
- Material Grade: H K M P S
- Series: ISOTURN
- Shape: Trigon
