ISCA-5504977

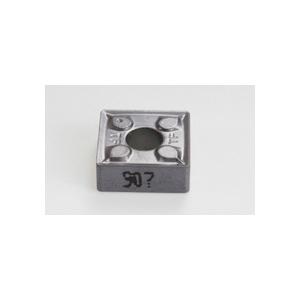

Iscar 5504977 2-Sided Turning Insert ANSI Code: SNMG 432 TF IC907 SNMG Insert Material Grade: H K M N P S 432 Insert Squared Shape 12 Seat Positive Rake Carbide Manufacturer's Grade: IC907
Product information
Description
Iscar Turning Insert 2-Sided SNMG Insert 432 Insert Squared 4 mm Maximum Depth of Cut 12.7 mm Inscribed Circle 4.76 mm Thickness 12.7 mm Width 12.7 mm Length 12 Seat Positive Rake TF Chipbreaker 0.8 mm Corner Radius 0.203 in Hole Dia Manufacturer's Grade: IC907 ANSI Code: SNMG 432 TF IC907 ISO Code: SNMG 120408-TF IC907 90 deg Included Angle 0 deg Relief Angle Carbide PVD-TiAlN+TiN Coated Material Grade: H K M N P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel High Temperature Alloys and Aluminum
Additional details
Product details
- Positive rake angle that varies along the edge to negative in order to prevent chipping Special design reduces cratering IC907 grade a tough sub-micron substrate TiAlN PVD coated Suitable for low-to-medium cutting speeds Developed for machining of heat resistant alloys austenitic stainless steel and hard steel
Attributes
- Corner Radius: 0.8 mm
- Finish: PVD-TiAlN+TiN Coated
- Insert Size: 432
- Insert Style: SNMG
- ISO Code: SNMG 120408-TF IC907
- Manufacturer's Grade: IC907
- Material: Carbide
- Material Grade: H K M N P S
- Shape: Squared
