ISCA-5504912

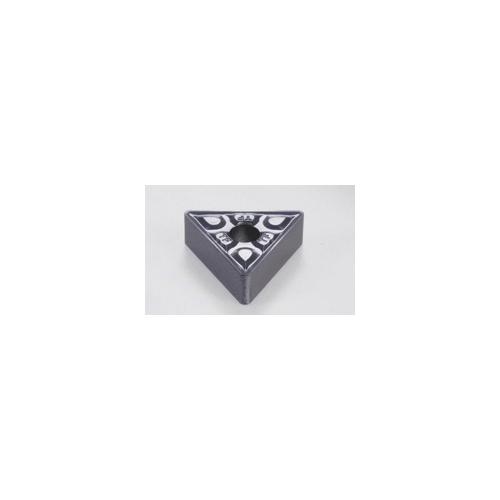

Iscar 5504912 2-Sided Turning Insert ANSI Code: TNMG 332 TF IC907 TNMG Insert Material Grade: H K M N P S 332 Insert Triangular Shape 16 Seat Positive Rake Carbide Manufacturer's Grade: IC907
Product information
Description
Iscar Turning Insert 2-Sided TNMG Insert 332 Insert Triangular 3 mm Maximum Depth of Cut 9.52 mm Inscribed Circle 4.76 mm Thickness 16 Seat Positive Rake TF Chipbreaker 0.8 mm Corner Radius 0.15 in Hole Dia Manufacturer's Grade: IC907 ANSI Code: TNMG 332 TF IC907 ISO Code: TNMG 160408-TF IC907 60 deg Included Angle 0 deg Relief Angle Carbide PVD-TiAlN+TiN Coated Material Grade: H K M N P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel High Temperature Alloys and Aluminum
Additional details
Product details
- Positive rake angle that varies along the edge to negative in order to prevent chipping Special design reduces cratering IC907 grade a tough sub-micron substrate TiAlN PVD coated Suitable for low-to-medium cutting speeds Developed for machining of heat resistant alloys austenitic stainless steel and hard steel
Attributes
- Corner Radius: 0.8 mm
- Finish: PVD-TiAlN+TiN Coated
- Insert Size: 332
- Insert Style: TNMG
- ISO Code: TNMG 160408-TF IC907
- Manufacturer's Grade: IC907
- Material: Carbide
- Material Grade: H K M N P S
- Shape: Triangular
