ISCA-5504902

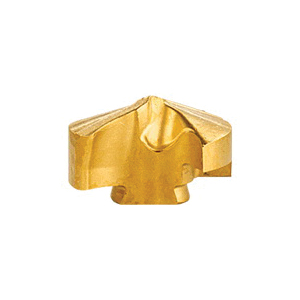

Iscar 5504902 CHAMDRILL Exchangeable Drill Head ANSI Code: IDI 0650-SG IC908 0.65 in Dia PVD-TiAlN Coated #16 Insert Seat 140 deg Included For Use With DCM-3D DCM-5D DCM-3.5D DCM-8D and DCT Indexable Head Drill Manufacturer's Grade: IC908
Product information
Description
Iscar Drill Head Exchangeable Series: CHAMDRILL ANSI Code: IDI 0650-SG IC908 0.65 in Dia 0.311 in Insert #16 Insert Seat 140 deg Included Angle For Use With: DCM-3D DCM-5D DCM-3.5D DCM-8D and DCT Indexable Head Drill Manufacturer's Grade: IC908 Through Coolant: Yes Carbide PVD-TiAlN Coated Applicable Materials: Cast Iron Hard Material High Temperature Alloy Stainless Steel and Steel
Additional details
Product details
- A hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions
Attributes
- Finish: PVD-TiAlN Coated
- Insert Size: 0.311 in
- Manufacturer's Grade: IC908
- Material: Carbide
- Series: CHAMDRILL
