ISCA-5504887

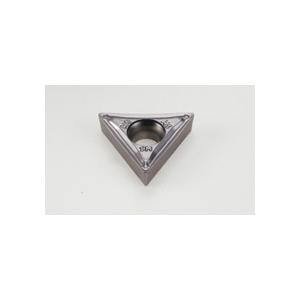

Iscar 5504887 ISOTURN 1-Sided Turning Insert ANSI Code: TCMT 2-1SM IC907 TCMT Insert Material Grade: H K M N P S 2-1 Insert Triangular Shape 11 Seat Positive Rake Carbide Manufacturer's Grade: IC907
Product information
Description

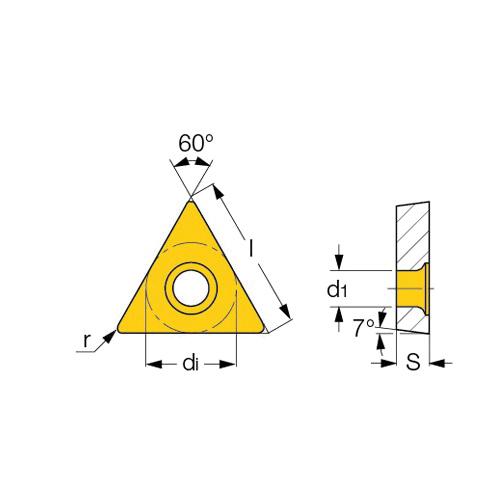

Iscar Turning Insert 1-Sided Series: ISOTURN TCMT Insert 2-1 Insert Triangular 3 mm Maximum Depth of Cut 6.35 mm Inscribed Circle 2.38 mm Thickness 11 Seat Positive Rake SM Chipbreaker 0.4 mm Corner Radius 2.8 mm Hole Dia Manufacturer's Grade: IC907 ANSI Code: TCMT 2-1SM IC907 ISO Code: TCMT 110204-SM IC907 60 deg Included Angle 7 deg Relief Angle Carbide PVD-TiAlN+TiN Coated Material Grade: H K M N P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel High Temperature Alloys and Aluminum
Additional details
Product details
- Positive flank Chip breaking in moderate feed range Positive rake low cutting forces IC907 grade a tough sub-micron substrate TiAlN PVD coated Suitable for low-to-medium cutting speeds Developed for machining of heat resistant alloys austenitic stainless steel and hard steel
Attributes
- Corner Radius: 0.4 mm
- Finish: PVD-TiAlN+TiN Coated
- Insert Size: 2-1
- Insert Style: TCMT
- ISO Code: TCMT 110204-SM IC907
- Manufacturer's Grade: IC907
- Material: Carbide
- Material Grade: H K M N P S
- Series: ISOTURN
- Shape: Triangular
