ISCA-5504873

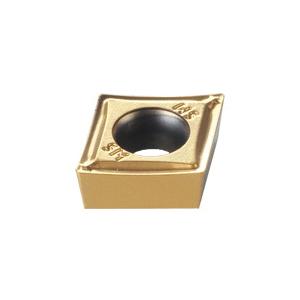

Iscar 5504873 1-Sided Turning Insert ANSI Code: CCMT 2 1 SM IC907 CCMT Insert Material Grade: H K M N P S 2-1 Insert Rhombic Shape 06 Seat Positive Rake Carbide Manufacturer's Grade: IC907
Product information
Description
Iscar Turning Insert 1-Sided CCMT Insert 2-1 Insert Rhombic 2.5 mm Maximum Depth of Cut 6.35 mm Inscribed Circle 2.38 mm Thickness 06 Seat Positive Rake SM Chipbreaker 0.4 mm Corner Radius 2.8 mm Hole Dia Manufacturer's Grade: IC907 ANSI Code: CCMT 2 1 SM IC907 ISO Code: CCMT 060204-SM IC907 80 deg Included Angle 7 deg Relief Angle Carbide PVD-TiAlN+TiN Coated Material Grade: H K M N P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel High Temperature Alloys and Aluminum
Additional details
Product details
- Chip breaking in moderate feed range Positive rake low cutting forces IC907 grade a tough sub-micron substrate TiAlN PVD coated Suitable for low-to-medium cutting speeds Developed for machining of heat resistant alloys austenitic stainless steel and hard steel
Attributes
- Corner Radius: 0.4 mm
- Finish: PVD-TiAlN+TiN Coated
- Insert Size: 2-1
- Insert Style: CCMT
- ISO Code: CCMT 060204-SM IC907
- Manufacturer's Grade: IC907
- Material: Carbide
- Material Grade: H K M N P S
- Shape: Rhombic
