ISCA-5504863
Iscar 5504863 DZDRILLS Single Sided Indexable Drill Insert ANSI Code: WOLH41 SW IC908 Trigon Shape Material Grade: H K M P S 41 Insert WOLH Insert 4.76 mm THK 12 mm Inscribed Circle Manufacturer's Grade: IC908
Product information
Description

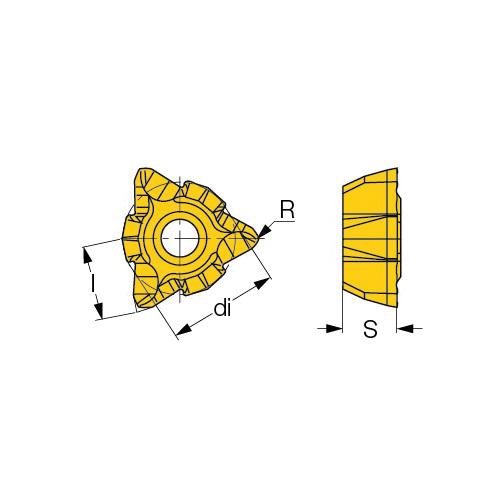

Iscar Indexable Drill Insert Single Sided Series: DZDRILLS WOLH Insert 41 Insert Trigon 12 mm Inscribed Circle 4.76 mm Thickness 0.315 in Length SW Chipbreaker 0.4 mm Corner Radius Manufacturer's Grade: IC908 80 deg Included Angle ANSI Code: WOLH41 SW IC908 ISO Code: WOLH 080404-SW IC908 Carbide PVD Coated Material Grade: H K M P S
Additional details
Product details
- Inserts for DZ drills with serrated cutting edges and a wide chipformer Grade IC908 - a hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions
Attributes
- Corner Radius: 0.4 mm
- Finish: PVD Coated
- Insert Size: 41
- Insert Style: WOLH
- ISO Code: WOLH 080404-SW IC908
- Manufacturer's Grade: IC908
- Material: Carbide
- Material Grade: H K M P S
- Series: DZDRILLS
- Shape: Trigon
