ISCA-5504859

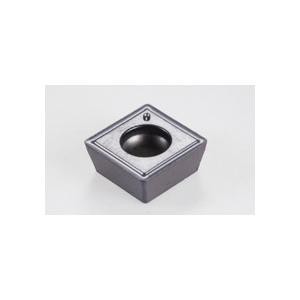

Iscar 5504859 DR-TWIST Single Sided Indexable Drill Insert Squared Shape Material Grade: C1 C2 C6 C7 09T306 Insert SOMT Insert 3.81 mm THK 9 mm Inscribed Circle For Use On Soft Materials Manufacturer's Grade: IC908
Product information
Description
Iscar Indexable Drill Insert Single Sided Series: DR-TWIST SOMT Insert 09T306 Insert Squared 9 mm Inscribed Circle 3.81 mm Thickness 9 mm Width 9 mm Length GF Chipbreaker 0.6 mm Corner Radius 0.133 in Hole Dia Manufacturer's Grade: IC908 90 deg Included Angle ISO Code: SOMT 09T306-GF IC908 Soft Materials For Use On Carbide PVD-TiAlN Coated Material Grade: C1 C2 C6 C7
Additional details
Product details
- Grade IC908 - a hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions
Attributes
- Corner Radius: 0.6 mm
- Finish: PVD-TiAlN Coated
- Insert Size: 09T306
- Insert Style: SOMT
- ISO Code: SOMT 09T306-GF IC908
- Manufacturer's Grade: IC908
- Material: Carbide
- Material Grade: C1 C2 C6 C7
- Series: DR-TWIST
- Shape: Squared
