ISCA-5504774

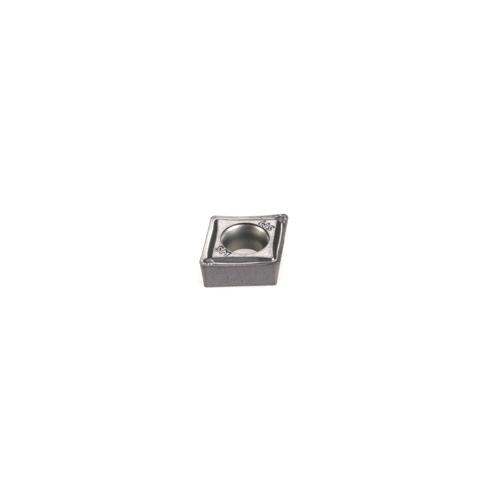

Iscar 5504774 ISOTURN 1-Sided Turning Insert ANSI Code: CCMT 3-2-SM IC907 CCMT Insert Material Grade: H K M N P S 3-2 Insert Rhombic Shape 09 Seat Positive Rake Carbide Manufacturer's Grade: IC907
Product information
Description
Iscar Turning Insert 1-Sided Series: ISOTURN CCMT Insert 3-2 Insert Rhombic 3 mm Maximum Depth of Cut 9.52 mm Inscribed Circle 3.97 mm Thickness 09 Seat Positive Rake SM Chipbreaker 0.8 mm Corner Radius 4.4 mm Hole Dia Manufacturer's Grade: IC907 ANSI Code: CCMT 3-2-SM IC907 ISO Code: CCMT 09T308-SM IC907 80 deg Included Angle 7 deg Relief Angle Carbide PVD-TiAlN+TiN Coated Material Grade: H K M N P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel High Temperature Alloys and Aluminum
Additional details
Product details
- Single sided turning inserts for semi-finishing and finishing Chip breaking in moderate feed range Positive rake low cutting forces Used for soft materials and exotic alloys Chipbreaker on one side with hole and countersink
Attributes
- Corner Radius: 0.8 mm
- Finish: PVD-TiAlN+TiN Coated
- Insert Size: 3-2
- Insert Style: CCMT
- ISO Code: CCMT 09T308-SM IC907
- Manufacturer's Grade: IC907
- Material: Carbide
- Material Grade: H K M N P S
- Series: ISOTURN
- Shape: Rhombic
