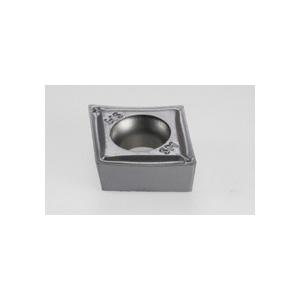

Iscar 5504773 ISOTURN 1-Sided Turning Insert ANSI Code: CCMT 3-1-SM IC907 CCMT Insert Material Grade: H K M N P S 3-1 Insert Rhombic Shape 09 Seat Positive Rake Carbide Manufacturer's Grade: IC907

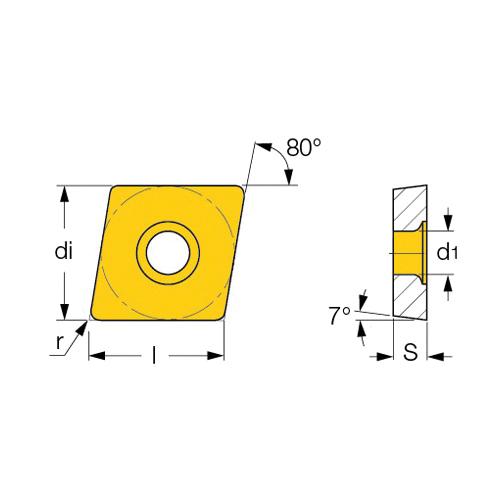

Iscar Turning Insert 1-Sided Series: ISOTURN CCMT Insert 3-1 Insert Rhombic 2.5 mm Maximum Depth of Cut 9.52 mm Inscribed Circle 3.97 mm Thickness 09 Seat Positive Rake SM Chipbreaker 0.4 mm Corner Radius 4.4 mm Hole Dia Manufacturer's Grade: IC907 ANSI Code: CCMT 3-1-SM IC907 ISO Code: CCMT 09T304-SM IC907 80 deg Included Angle 7 deg Relief Angle Carbide PVD-TiAlN+TiN Coated Material Grade: H K M N P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel High Temperature Alloys and Aluminum
