ISCA-5504754

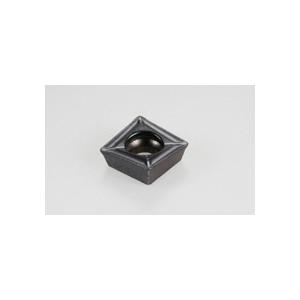

Iscar 5504754 DRDRILLS Single Sided Indexable Drill Insert Special Parallelogram Shape Material Grade: H K M P S 60204 Insert XOMT Insert 2.56 mm THK 6.16 mm Inscribed Circle Manufacturer's Grade: IC908
Product information
Description

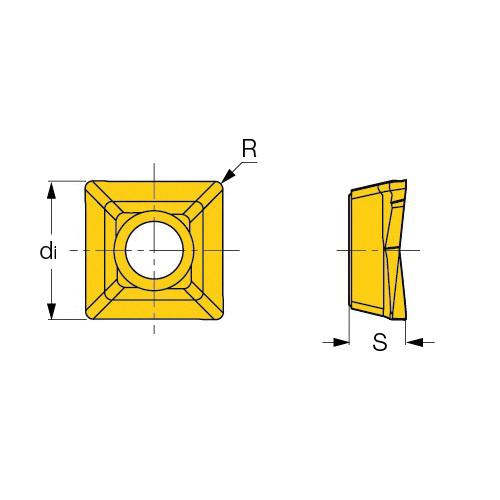

Iscar Indexable Drill Insert Single Sided Series: DRDRILLS XOMT Insert 60204 Insert Special Parallelogram Shape 6.16 mm Inscribed Circle 2.56 mm Thickness DT Chipbreaker 0.4 mm Corner Radius 0.11 in Diameter Hole Manufacturer's Grade: IC908 85 deg Included Angle ISO Code: XOMT 060204-DT IC908 Carbide PVD Coated Material Grade: H K M P S
Additional details
Product details
- Grade IC908 - a hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions
Attributes
- Corner Radius: 0.4 mm
- Finish: PVD Coated
- Insert Size: 60204
- Insert Style: XOMT
- ISO Code: XOMT 060204-DT IC908
- Manufacturer's Grade: IC908
- Material: Carbide
- Material Grade: H K M P S
- Series: DRDRILLS
- Shape: Special Parallelogram
