ISCA-5504743

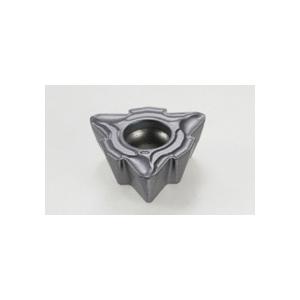

Iscar 5504743 DZDRILLS Indexable Drill Insert ANSI Code: WOLH2.5-1-SW IC908 Trigon Shape 251 Insert WOLH Insert 3.81 mm THK 8 mm Inscribed Circle Manufacturer's Grade: IC908
Product information
Description
Iscar Indexable Drill Insert Series: DZDRILLS WOLH Insert 251 Insert Trigon 8 mm Inscribed Circle 3.81 mm Thickness 5 mm Length SW Chipbreaker 0.4 mm Corner Radius Manufacturer's Grade: IC908 80 deg Included Angle ANSI Code: WOLH2.5-1-SW IC908 ISO Code: WOLH 05T304-SW IC908 Carbide PVD Coated
Additional details
Product details
- Inserts for DZ drills with serrated cutting edges and a wide chipformer Grade IC908 - a hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions
Attributes
- Corner Radius: 0.4 mm
- Finish: PVD Coated
- Insert Size: 251
- Insert Style: WOLH
- ISO Code: WOLH 05T304-SW IC908
- Manufacturer's Grade: IC908
- Material: Carbide
- Series: DZDRILLS
- Shape: Trigon
