ISCA-5504598

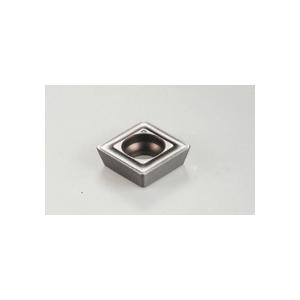

Iscar 5504598 DR-TWIST Single Sided Indexable Drill Insert Squared Shape Material Grade: C2 C3 C5 C6 60204 Insert SOMT Insert 1.96 mm THK 6 mm Inscribed Circle For Use On Alloy Steels and Stainless Steel Manufacturer's Grade: IC328
Product information
Description

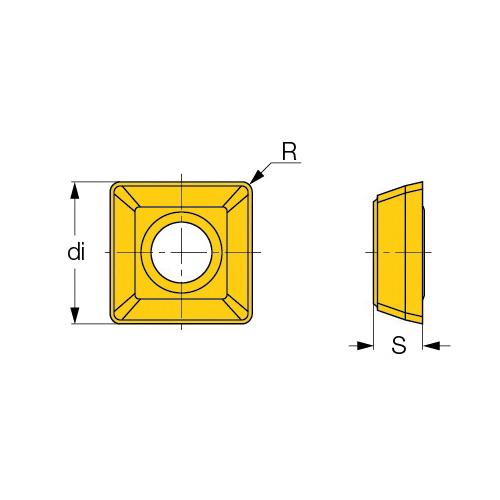

Iscar Indexable Drill Insert Single Sided SOMT Insert 60204 Insert Squared 6 mm Inscribed Circle 1.96 mm Thickness 6 mm Width 6 mm Length DT Chipbreaker 0.4 mm Corner Radius Manufacturer's Grade: IC328 90 deg Included Angle ISO Code: SOMT 060204-DT IC328 Alloy Steels and Stainless Steel For Use On Carbide PVD-TiCN Coated Material Grade: C2 C3 C5 C6
Additional details
Product details
- Grade IC328 - a thin PVD-coated TiCN layer on a tough substrate for milling parting and grooving on stainless and alloy steels at low-to medium cutting speeds and for unstable machining conditions
Attributes
- Corner Radius: 0.4 mm
- Finish: PVD-TiCN Coated
- Insert Size: 60204
- Insert Style: SOMT
- ISO Code: SOMT 060204-DT IC328
- Manufacturer's Grade: IC328
- Material: Carbide
- Material Grade: C2 C3 C5 C6
- Series: DR-TWIST
- Shape: Squared
