ISCA-5504427

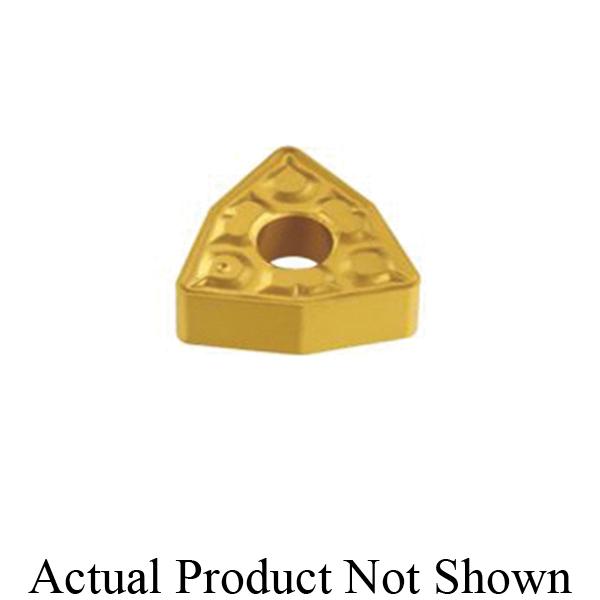

Iscar 5504427 ISOTURN 2-Sided Turning Insert ANSI Code: WNMG 431-TF IC3028 WNMG Insert 431 Insert Trigon Shape 08 Seat Positive Rake Carbide Manufacturer's Grade: IC3028
Product information
Description
Iscar Turning Insert 2-Sided Series: ISOTURN WNMG Insert 431 Insert Trigon 4 mm Maximum Depth of Cut 12.7 mm Inscribed Circle 4.76 mm Thickness 08 Seat Positive Rake TF Chipbreaker 0.4 mm Corner Radius 0.203 in Hole Dia Manufacturer's Grade: IC3028 ANSI Code: WNMG 431-TF IC3028 ISO Code: WNMG 080404-TF IC3028 80 deg Included Angle 0 deg Relief Angle Carbide PVD Coated
Additional details
Product details
- Double-sided trigon insert positive rake angle that varies along the edge to negative in order to prevent chipping Special design reduces cratering Chipbreaker on both sides with hole
Attributes
- Corner Radius: 0.4 mm
- Finish: PVD Coated
- Insert Size: 431
- Insert Style: WNMG
- ISO Code: WNMG 080404-TF IC3028
- Manufacturer's Grade: IC3028
- Material: Carbide
- Series: ISOTURN
- Shape: Trigon
