ISCA-5504425

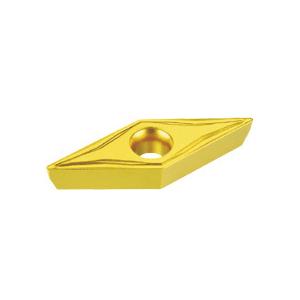

Iscar 5504425 ISOTURN Turning Insert ANSI Code: VCMT 331-14 IC3028 VCMT Insert 331 Insert Rhombic Shape Positive Rake Carbide Manufacturer's Grade: IC3028
Product information
Description

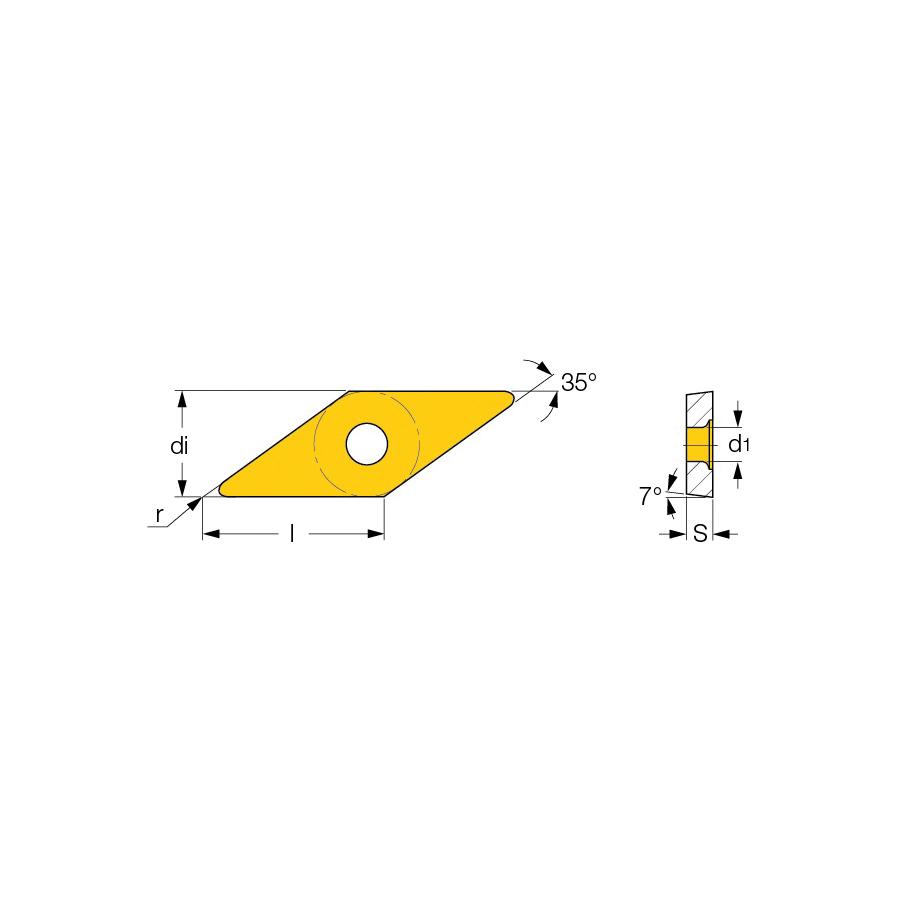

Iscar Turning Insert Series: ISOTURN VCMT Insert 331 Insert Rhombic 0.197 in Maximum Depth of Cut 3/8 in Inscribed Circle 0.187 in Thickness Positive Rake 0.016 in Corner Radius 0.173 in Hole Dia Manufacturer's Grade: IC3028 ANSI Code: VCMT 331-14 IC3028 35 deg Included Angle 7 deg Relief Angle Carbide PVD Coated
Additional details
Product details
- Positive flank Chip breaking in moderate feed range Positive rake low cutting forces Chipbreaker on one side with hole and countersink
Attributes
- Corner Radius: 0.016 in
- Finish: PVD Coated
- Insert Size: 331
- Insert Style: VCMT
- Manufacturer's Grade: IC3028
- Material: Carbide
- Series: ISOTURN
- Shape: Rhombic
