ISCA-5504095

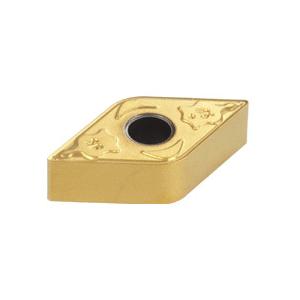

Iscar 5504095 ISOTURN 2-Sided Turning Insert ANSI Code: DNMG 331-SF IC570 DNMG Insert Material Grade: M P 331 Insert Rhombic Shape 11 Seat For Use On Stainless Steel and Steel Carbide Manufacturer's Grade: IC570
Product information
Description

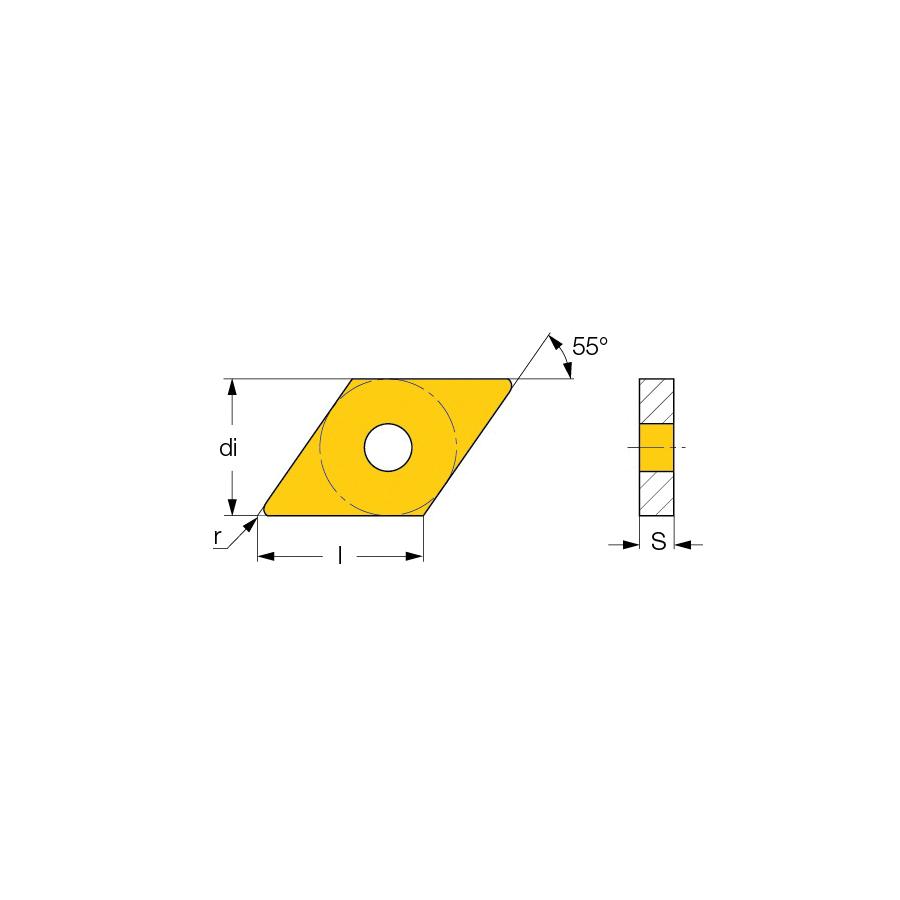

Iscar Turning Insert 2-Sided Series: ISOTURN DNMG Insert 331 Insert Rhombic 9.52 mm Inscribed Circle 4.76 mm Thickness 11 Seat SF Chipbreaker 0.4 mm Corner Radius Manufacturer's Grade: IC570 ANSI Code: DNMG 331-SF IC570 ISO Code: DNMG 110404-SF IC570 55 deg Included Angle 0 deg Relief Angle Carbide PVD-TiCN+TiN Coated Material Grade: M P For Use On: Stainless Steel and Steel
Additional details
Product details
- Controls chip flow at very low feed and depth of cut Excellent crater wear resistance Chipbreaker on both sides with hole
Attributes
- Corner Radius: 0.4 mm
- Finish: PVD-TiCN+TiN Coated
- Insert Size: 331
- Insert Style: DNMG
- ISO Code: DNMG 110404-SF IC570
- Manufacturer's Grade: IC570
- Material: Carbide
- Material Grade: M P
- Series: ISOTURN
- Shape: Rhombic
