ISCA-5504089

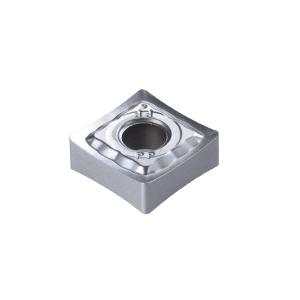

Iscar 5504089 ISOTURN 2-Sided Turning Insert ANSI Code: SNMG 432 PP IC908 SNMG Insert Material Grade: H K M P S 432 Insert Squared Shape 12 Seat Positive Rake Carbide Manufacturer's Grade: IC908
Product information
Description
Iscar Turning Insert 2-Sided Series: ISOTURN SNMG Insert 432 Insert Squared 4 mm Maximum Depth of Cut 12.87 mm Inscribed Circle 4.76 mm Thickness 12.87 mm Width 12.87 mm Length 12 Seat Positive Rake PP Chipbreaker 0.8 mm Corner Radius Manufacturer's Grade: IC908 ANSI Code: SNMG 432 PP IC908 ISO Code: SNMG 120408-PP IC908 90 deg Included Angle 0 deg Relief Angle Carbide PVD-TiAlN Coated Material Grade: H K M P S For Use On: Stainless Steel Steel Cast Iron Hardened Steel and High Temperature Alloys
Additional details
Product details
- Positive rake angle and sharp positive radial edge IC908 grade a hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions
Attributes
- Corner Radius: 0.8 mm
- Finish: PVD-TiAlN Coated
- Insert Size: 432
- Insert Style: SNMG
- ISO Code: SNMG 120408-PP IC908
- Manufacturer's Grade: IC908
- Material: Carbide
- Material Grade: H K M P S
- Series: ISOTURN
- Shape: Squared
