ISCA-5503970

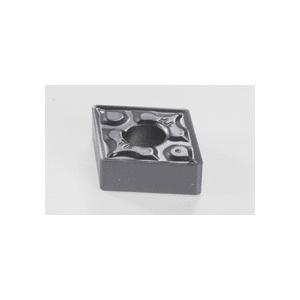

Iscar 5503970 ISOTURN 2-Sided Turning Insert ANSI Code: CNMG 432-TF IC3028 CNMG Insert Material Grade: M P S 432 Insert Rhombic Shape 12 Seat Positive Rake For Use On Stainless Steel Steel and High Temperature Alloys Carbide
Product information
Description
Iscar Turning Insert 2-Sided Series: ISOTURN CNMG Insert 432 Insert Rhombic 4 mm Maximum Depth of Cut 12.7 mm Inscribed Circle 4.76 mm Thickness 12 Seat Positive Rake TF Chipbreaker 0.8 mm Corner Radius 0.203 in Hole Dia Manufacturer's Grade: IC3028 ANSI Code: CNMG 432-TF IC3028 ISO Code: CNMG 120408-TF IC3028 80 deg Included Angle 0 deg Relief Angle Carbide PVD-TiCN Coated Material Grade: M P S For Use On: Stainless Steel Steel and High Temperature Alloys
Additional details
Product details
- Positive rake angle that varies along the edge to negative in order to prevent chipping Special design reduces cratering Chipbreaker on both sides with hole
Attributes
- Corner Radius: 0.8 mm
- Finish: PVD-TiCN Coated
- Insert Size: 432
- Insert Style: CNMG
- ISO Code: CNMG 120408-TF IC3028
- Manufacturer's Grade: IC3028
- Material: Carbide
- Material Grade: M P S
- Series: ISOTURN
- Shape: Rhombic
